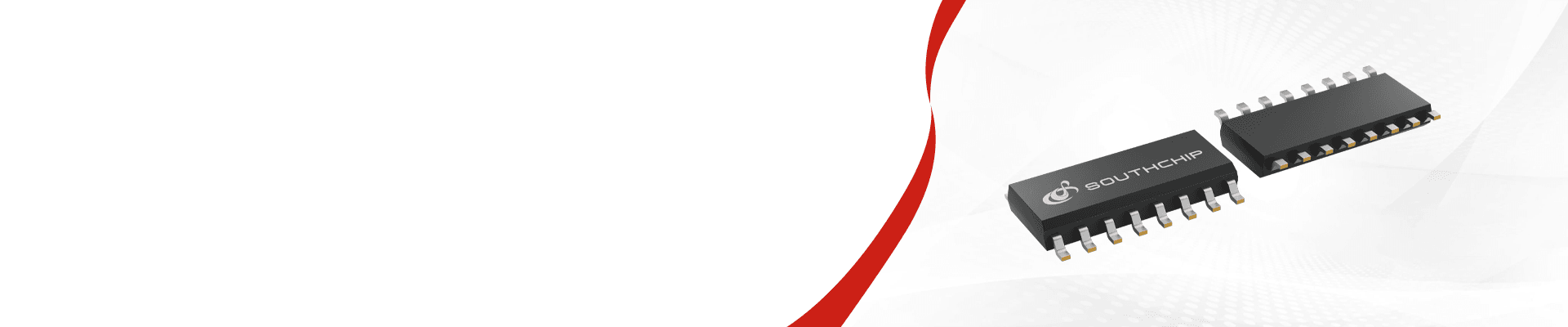

SS88N5HS4F8

Low-Power ADC-Type Microcontroller with Integrated Single-Cell Li-Ion Battery Charging Management and Boost Output

SS88N5HS4F8SS88N5HS4F8

SS88N5HS4F8

SS88N5H is a low-power microcontroller developed by Sinhmicro that integrates 800mA linear charging, 500mA boost output, and power management unit. It features a clear MCU memory architecture, comprehensive system-level control, rich built-in interface functions, flexible configuration modes, and various low-power options. This product is primarily used in portable smart electronic devices that require charging and intelligent control, with simplified peripheral costs, superior overall performance, and flexible and convenient development.
SS88N5HS4F8
SS88N5H is a low-power microcontroller developed by Sinhmicro that integrates 800mA linear charging, 500mA boost output, and power management unit. It features a clear MCU memory architecture, comprehensive system-level control, rich built-in interface functions, flexible configuration modes, and various low-power options. This product is primarily used in portable smart electronic devices that require charging and intelligent control, with simplified peripheral costs, superior overall performance, and flexible and convenient development.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
PackageSOP16L 9.9x3.9x1.75
BAT Power Supply Range2.7-4.8V
VIN Power Supply Range4.3 ~ 5.5V
Abs. VIN(Max)28V
LDOs & RegulatorVINLDO,BATLDO
Charge TopologyLinear
Charge Voltage Range4.0~4.6V
Charge Current(Max)800mA
Boost current(Max)500mA
Code Flash Size (kB)8
Code Flash TypeMTP
Data Flash or EEPROM Size(B)-
RAM Size (B)192
Parameter NameParameter Value
Operating Frequency (MHz)12
Timers2
Other timer functionsWDG,SysTick
Number of PWMs4
Number of A/D Converters1
Number of ADC channels4
I/Os7
I2C-
UART1
SPI-
Other PeripheralsNTC
Boost Voltage Range3.6 ~ 5.1V
Parameter NameParameter Value
PackageSOP16L 9.9x3.9x1.75
BAT Power Supply Range2.7-4.8V
VIN Power Supply Range4.3 ~ 5.5V
Abs. VIN(Max)28V
LDOs & RegulatorVINLDO,BATLDO
Charge TopologyLinear
Charge Voltage Range4.0~4.6V
Charge Current(Max)800mA
Boost current(Max)500mA
Code Flash Size (kB)8
Code Flash TypeMTP
Data Flash or EEPROM Size(B)-
RAM Size (B)192
Operating Frequency (MHz)12
Timers2
Other timer functionsWDG,SysTick
Number of PWMs4
Number of A/D Converters1
Number of ADC channels4
I/Os7
I2C-
UART1
SPI-
Other PeripheralsNTC
Boost Voltage Range3.6 ~ 5.1V
