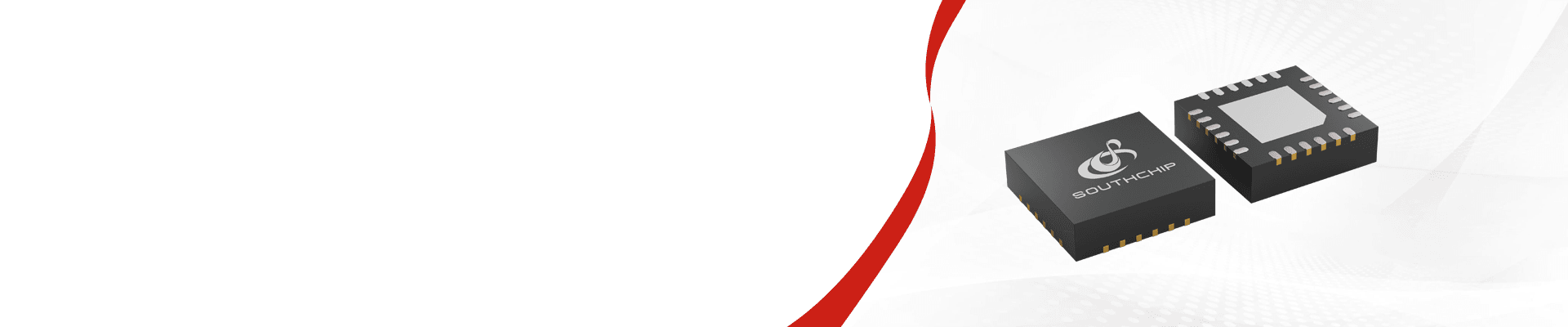

SS88F9HN3FC

Integrated power management and motor control functions, low-power microcontroller supporting touch detection

SS88F9HN3FCSS88F9HN3FC

SS88F9HN3FC

SS88FX is an 8-bit low-power microcontroller developed by Sinhmicro, which integrates power management, motor control, and touch detection functions. It has a clear MCU storage architecture, complete system level control, and built-in rich interface functions, flexible configuration modes, and different low-power options. This product is mainly used in portable intelligent electronic devices that require charging and intelligent control. The smaller chip area brings about reduced peripheral costs, superior overall performance, and flexible and convenient development.
SS88F9HN3FC
SS88FX is an 8-bit low-power microcontroller developed by Sinhmicro, which integrates power management, motor control, and touch detection functions. It has a clear MCU storage architecture, complete system level control, and built-in rich interface functions, flexible configuration modes, and different low-power options. This product is mainly used in portable intelligent electronic devices that require charging and intelligent control. The smaller chip area brings about reduced peripheral costs, superior overall performance, and flexible and convenient development.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
PackageQFN24L 3x3x0.85
BAT Power Supply Range2.7-4.8V
VIN Power Supply Range4.3 ~ 5.5V
Abs. VIN(Max)33V
LDOs & RegulatorVINLDO,BATLDO
Charge TopologyLinear
Charge Voltage Range4.2 ~ 4.5V
Charge Current(Max)1000mA
Boost current(Max)-
Code Flash Size (kB)12
Code Flash TypeMTP
Data Flash or EEPROM Size(B)128
RAM Size (B)192
Parameter NameParameter Value
Operating Frequency (MHz)12
Timers3
Other timer functionsWDG,SysTick,Always Timer
Number of PWMs7
Number of A/D Converters1
Number of ADC channels11
I/Os20
I2C-
UART1
SPI-
Other PeripheralsTouch sensor,ACMP,NTC,NMOS,EINT
Boost Voltage Range-
Parameter NameParameter Value
PackageQFN24L 3x3x0.85
BAT Power Supply Range2.7-4.8V
VIN Power Supply Range4.3 ~ 5.5V
Abs. VIN(Max)33V
LDOs & RegulatorVINLDO,BATLDO
Charge TopologyLinear
Charge Voltage Range4.2 ~ 4.5V
Charge Current(Max)1000mA
Boost current(Max)-
Code Flash Size (kB)12
Code Flash TypeMTP
Data Flash or EEPROM Size(B)128
RAM Size (B)192
Operating Frequency (MHz)12
Timers3
Other timer functionsWDG,SysTick,Always Timer
Number of PWMs7
Number of A/D Converters1
Number of ADC channels11
I/Os20
I2C-
UART1
SPI-
Other PeripheralsTouch sensor,ACMP,NTC,NMOS,EINT
Boost Voltage Range-
