SS88ETDAR8

Integrated power management and motor control functions, low-power microcontroller supporting touch detection

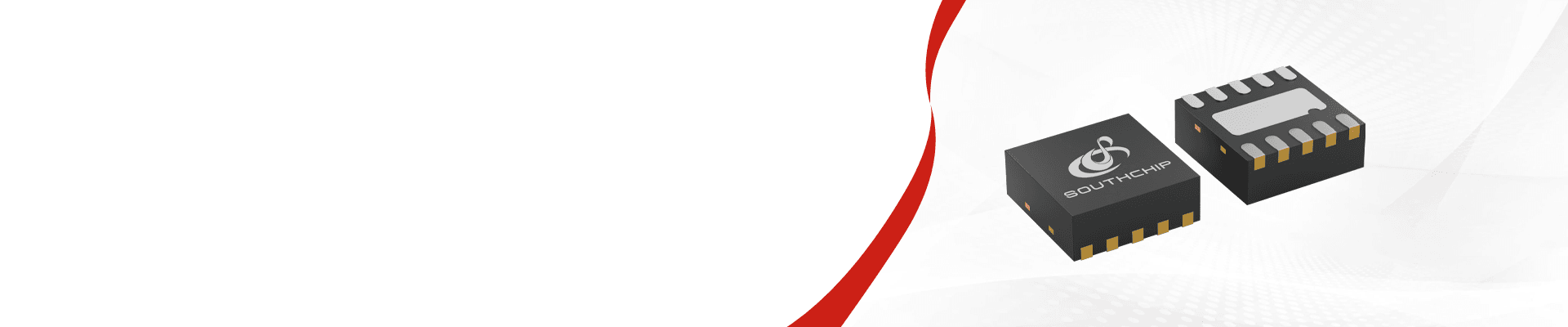

SS88ETDAR8SS88ETDAR8

SS88ETDAR8

SS88EX is an 8-bit low-power microcontroller developed, which integrates power management, motor control, and touch detection functions. It has a clear MCU storage architecture, complete system level control, and built-in rich interface functions, flexible configuration modes, and different low-power options. This product is mainly used in portable intelligent electronic devices that require charging and intelligent control. The smaller chip area brings about reduced peripheral costs, superior overall performance, and flexible and convenient development.
SS88ETDAR8
SS88EX is an 8-bit low-power microcontroller developed, which integrates power management, motor control, and touch detection functions. It has a clear MCU storage architecture, complete system level control, and built-in rich interface functions, flexible configuration modes, and different low-power options. This product is mainly used in portable intelligent electronic devices that require charging and intelligent control. The smaller chip area brings about reduced peripheral costs, superior overall performance, and flexible and convenient development.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
PackageDFN10L 2x2x0.75
BAT Power Supply Range2.7-4.8V
VIN Power Supply Range3.2 ~ 5.5V
Abs. VIN(Max)7.5V
LDOs & RegulatorVINLDO,BATLDO
Charge TopologyLinear
Charge Voltage Range4.2 ~ 4.5V
Charge Current(Max)1000mA
Boost current(Max)-
Code Flash Size (kB)8
Code Flash TypeOTP
Data Flash or EEPROM Size(B)-
RAM Size (B)192
Parameter NameParameter Value
Operating Frequency (MHz)12
Timers3
Other timer functionsWDG,SysTick,Always Timer
Number of PWMs7
Number of A/D Converters1
Number of ADC channels5
I/Os6
I2C-
UART1
SPI-
Other PeripheralsTouch sensor,ACMP,NTC,NMOS,EINT
Boost Voltage Range-
Parameter NameParameter Value
PackageDFN10L 2x2x0.75
BAT Power Supply Range2.7-4.8V
VIN Power Supply Range3.2 ~ 5.5V
Abs. VIN(Max)7.5V
LDOs & RegulatorVINLDO,BATLDO
Charge TopologyLinear
Charge Voltage Range4.2 ~ 4.5V
Charge Current(Max)1000mA
Boost current(Max)-
Code Flash Size (kB)8
Code Flash TypeOTP
Data Flash or EEPROM Size(B)-
RAM Size (B)192
Operating Frequency (MHz)12
Timers3
Other timer functionsWDG,SysTick,Always Timer
Number of PWMs7
Number of A/D Converters1
Number of ADC channels5
I/Os6
I2C-
UART1
SPI-
Other PeripheralsTouch sensor,ACMP,NTC,NMOS,EINT
Boost Voltage Range-
