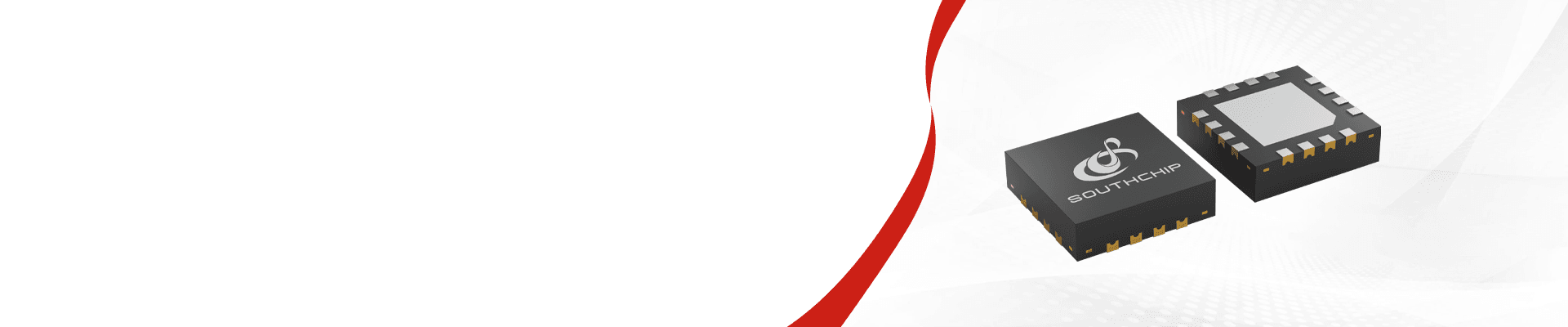

SS88D6HN1F8

Low-Power Microcontroller Integrating a Maximum 1.2A Switching Charger, 0.6A Boost Output, and Power Management Unit

SS88D6HN1F8SS88D6HN1F8

SS88D6HN1F8

SS88DX is a low-power microcontroller developed by Sinhmicro that integrates 1.2A switching charging, 0.6A boost output, and power management unit. It features a clear MCU memory architecture, comprehensive system-level control, rich built-in interface functions, flexible configuration modes, and various low-power options. This product is primarily designed for portable smart electronic devices that require charging and intelligent control, offering simplified peripheral costs, superior overall performance, and flexible and convenient development.
SS88D6HN1F8
SS88DX is a low-power microcontroller developed by Sinhmicro that integrates 1.2A switching charging, 0.6A boost output, and power management unit. It features a clear MCU memory architecture, comprehensive system-level control, rich built-in interface functions, flexible configuration modes, and various low-power options. This product is primarily designed for portable smart electronic devices that require charging and intelligent control, offering simplified peripheral costs, superior overall performance, and flexible and convenient development.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
PackageQFN16L 3x3x0.85
BAT Power Supply Range2.7-4.8V
VIN Power Supply Range4.3 ~ 5.5V
Abs. VIN(Max)28V
LDOs & RegulatorVINLDO,BATLDO
Charge TopologyLinear,Buck
Charge Voltage Range4.1 ~ 4.5V
Charge Current(Max)1200mA
Boost current(Max)600mA
Code Flash Size (kB)8
Code Flash TypeMTP
Data Flash or EEPROM Size(B)-
RAM Size (B)256
Parameter NameParameter Value
Operating Frequency (MHz)12
Timers2
Other timer functionsWDG,SysTick,Always Timer
Number of PWMs4
Number of A/D Converters1
Number of ADC channels10
I/Os8
I2C-
UART2
SPI-
Other PeripheralsNTC
Boost Voltage Range3.6 ~ 5.1V
Parameter NameParameter Value
PackageQFN16L 3x3x0.85
BAT Power Supply Range2.7-4.8V
VIN Power Supply Range4.3 ~ 5.5V
Abs. VIN(Max)28V
LDOs & RegulatorVINLDO,BATLDO
Charge TopologyLinear,Buck
Charge Voltage Range4.1 ~ 4.5V
Charge Current(Max)1200mA
Boost current(Max)600mA
Code Flash Size (kB)8
Code Flash TypeMTP
Data Flash or EEPROM Size(B)-
RAM Size (B)256
Operating Frequency (MHz)12
Timers2
Other timer functionsWDG,SysTick,Always Timer
Number of PWMs4
Number of A/D Converters1
Number of ADC channels10
I/Os8
I2C-
UART2
SPI-
Other PeripheralsNTC
Boost Voltage Range3.6 ~ 5.1V
