8-bit low-power Flash microcontroller with integrated power management function built-in operational amplifier

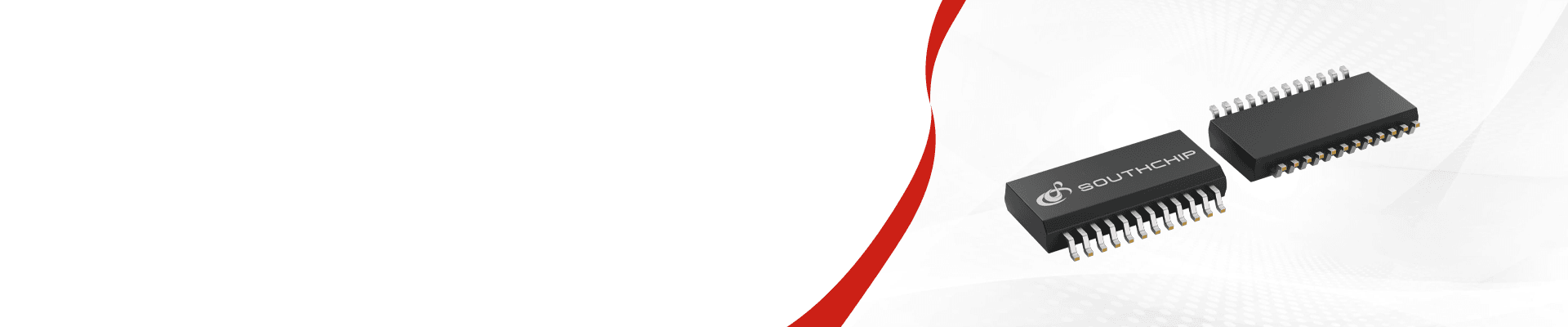

SS888AHP18FH
SS888X is Sinhmicro'sAD Flash MCU series with integrated power management function built-in
operational amplifier, built-in rich interface functions, flexible configuration modes, and different low power
consumption options. This product is mainly used in portable intelligentelectronic devices that require
charging and intelligent control, bringing simplified peripheral costs, excellent performance, and flexible
and convenient development.
SS888X is Sinhmicro'sAD Flash MCU series with integrated power management function built-in
operational amplifier, built-in rich interface functions, flexible configuration modes, and different low power
consumption options. This product is mainly used in portable intelligentelectronic devices that require
charging and intelligent control, bringing simplified peripheral costs, excellent performance, and flexible
and convenient development.
Product Details
Design / Development
Technical Documentation
Applications
Product Details
Technical Documentation
Parameter NameParameter Value
PackageSSOP24L 8.65x3.9x1.4
BAT Power Supply Range2.7-4.8V
VIN Power Supply Range4.5 ~ 5.5V
Abs. VIN(Max)28V
LDOs & RegulatorSPWR
Charge TopologyLinear
Charge Voltage Range1.5 ~ 4.8V
Charge Current(Max)900mA
Boost current(Max)-
Code Flash Size (kB)16
Code Flash TypeMTP
Data Flash or EEPROM Size(B)128
RAM Size (B)1024
Parameter NameParameter Value
Operating Frequency (MHz)12
Timers3
Other timer functionsWDG,SysTick
Number of PWMs6
Number of A/D Converters1
Number of ADC channels8
I/Os19
I2C2
UART2
SPI1
Other PeripheralsTouch sensor,Segment LCD,ACMP,PFO,OPA,NTC,BUART,EINT
Boost Voltage Range-
Parameter NameParameter Value
PackageSSOP24L 8.65x3.9x1.4
BAT Power Supply Range2.7-4.8V
VIN Power Supply Range4.5 ~ 5.5V
Abs. VIN(Max)28V
LDOs & RegulatorSPWR
Charge TopologyLinear
Charge Voltage Range1.5 ~ 4.8V
Charge Current(Max)900mA
Boost current(Max)-
Code Flash Size (kB)16
Code Flash TypeMTP
Data Flash or EEPROM Size(B)128
RAM Size (B)1024
Operating Frequency (MHz)12
Timers3
Other timer functionsWDG,SysTick
Number of PWMs6
Number of A/D Converters1
Number of ADC channels8
I/Os19
I2C2
UART2
SPI1
Other PeripheralsTouch sensor,Segment LCD,ACMP,PFO,OPA,NTC,BUART,EINT
