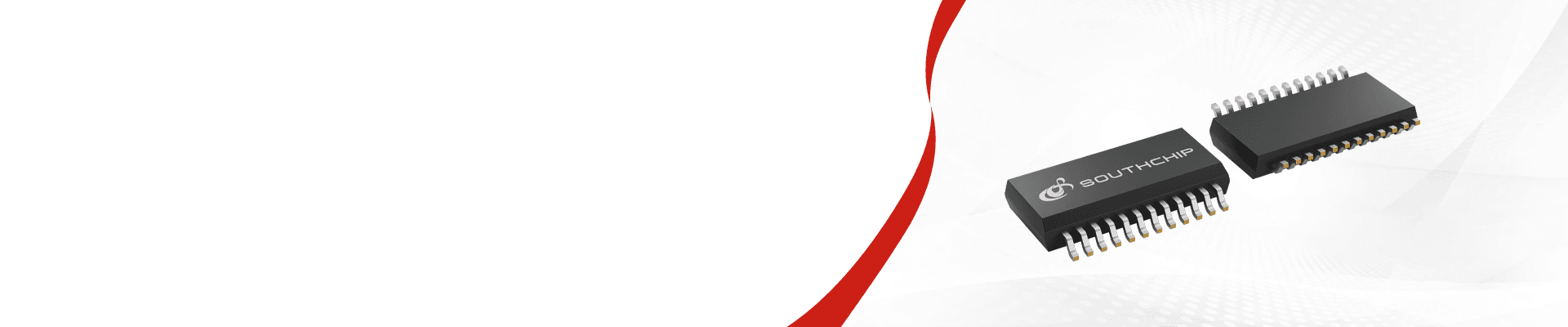

SS880MHP18RC

8-bit Low Power Microcontroller Integrated with Power Management

SS880MHP18RCSS880MHP18RC

SS880MHP18RC

SS880X is an AD MCU integrated with charge and discharge management. It has rich interface functions, flexible configuration mode and different low power consumption options. This product is mainly used in portable electronic devices that need charging and intelligent control, which brings simplified peripheral cost, excellent performance and convenient development. Typical application products, such as Bluetooth headset charging box, LED light group, hand-held atomizer, personal care equipment, aromatherapy machine, aromatherapy lamp, electronic toys, etc.
SS880MHP18RC
SS880X is an AD MCU integrated with charge and discharge management. It has rich interface functions, flexible configuration mode and different low power consumption options. This product is mainly used in portable electronic devices that need charging and intelligent control, which brings simplified peripheral cost, excellent performance and convenient development. Typical application products, such as Bluetooth headset charging box, LED light group, hand-held atomizer, personal care equipment, aromatherapy machine, aromatherapy lamp, electronic toys, etc.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
PackageSSOP24L 8.65x3.9x1.45
BAT Power Supply Range2.7-4.8V
VIN Power Supply Range4.5 ~ 5.5V
Abs. VIN(Max)28V
LDOs & RegulatorSPWR
Charge TopologyLinear
Charge Voltage Range1.5 ~ 4.8V
Charge Current(Max)720mA
Boost current(Max)-
Code Flash Size (kB)12
Code Flash TypeOTP
Data Flash or EEPROM Size(B)-
RAM Size (B)192
Parameter NameParameter Value
Operating Frequency (MHz)12
Timers3
Other timer functionsWDG
Number of PWMs6
Number of A/D Converters1
Number of ADC channels8
I/Os16
I2C1
UART1
SPI-
Other PeripheralsSegment LCD,ACMP,PFO,NTC,EINT
Boost Voltage Range-
Parameter NameParameter Value
PackageSSOP24L 8.65x3.9x1.45
BAT Power Supply Range2.7-4.8V
VIN Power Supply Range4.5 ~ 5.5V
Abs. VIN(Max)28V
LDOs & RegulatorSPWR
Charge TopologyLinear
Charge Voltage Range1.5 ~ 4.8V
Charge Current(Max)720mA
Boost current(Max)-
Code Flash Size (kB)12
Code Flash TypeOTP
Data Flash or EEPROM Size(B)-
RAM Size (B)192
Operating Frequency (MHz)12
Timers3
Other timer functionsWDG
Number of PWMs6
Number of A/D Converters1
Number of ADC channels8
I/Os16
I2C1
UART1
SPI-
Other PeripheralsSegment LCD,ACMP,PFO,NTC,EINT
Boost Voltage Range-
