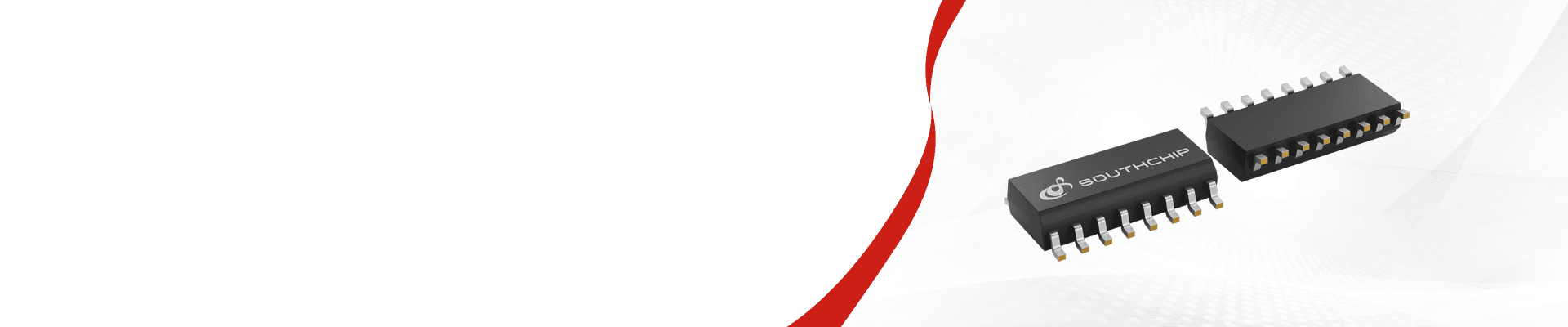

SS8809S10RC

8-bit Low Power Microcontroller Integrated with Power Management

SS8809S10RCSS8809S10RC

SS8809S10RC

SS880X is an AD MCU integrated with charge and discharge management. It has rich interface functions, flexible configuration mode and different low power consumption options. This product is mainly used in portable electronic devices that need charging and intelligent control, which brings simplified peripheral cost, excellent performance and convenient development. Typical application products, such as Bluetooth headset charging box, LED light group, hand-held atomizer, personal care equipment, aromatherapy machine, aromatherapy lamp, electronic toys, etc. SS880X的核心是一颗兼容8051指令集的8位MCU,最高主频为12MHz。经过优化,可以在单个时钟周 期内执行大部分的1字节指令,平均性能是原生8051的8倍。此外,SS880X支持正常、低速、空闲、待 机和休眠5种工作模式,在高性能的同时,提供多样的低功耗选项,以支持电池供电的设备和场景。
SS8809S10RC
SS880X is an AD MCU integrated with charge and discharge management. It has rich interface functions, flexible configuration mode and different low power consumption options. This product is mainly used in portable electronic devices that need charging and intelligent control, which brings simplified peripheral cost, excellent performance and convenient development. Typical application products, such as Bluetooth headset charging box, LED light group, hand-held atomizer, personal care equipment, aromatherapy machine, aromatherapy lamp, electronic toys, etc. SS880X的核心是一颗兼容8051指令集的8位MCU,最高主频为12MHz。经过优化,可以在单个时钟周 期内执行大部分的1字节指令,平均性能是原生8051的8倍。此外,SS880X支持正常、低速、空闲、待 机和休眠5种工作模式,在高性能的同时,提供多样的低功耗选项,以支持电池供电的设备和场景。
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
PackageSOP16 9.9x3.9x1.5
BAT Power Supply Range2.7-4.8V
VIN Power Supply Range4.5 ~ 5.5V
Abs. VIN(Max)14V
LDOs & RegulatorSPWR
Charge TopologyLinear
Charge Voltage Range1.5 ~ 4.8V
Charge Current(Max)720mA
Boost current(Max)-
Boost Voltage Range-
Code Flash Size (kB)12
Code Flash TypeOTP
Data Flash or EEPROM Size(B)-
Parameter NameParameter Value
RAM Size (B)192
Operating Frequency (MHz)12
Timers3
Other timer functionsWDG
Number of PWMs6
Number of A/D Converters1
Number of ADC channels8
I/Os12
I2C1
UART1
SPI-
Other PeripheralsSegment LCD,ACMP,PFO,NTC,EINT
Parameter NameParameter Value
PackageSOP16 9.9x3.9x1.5
BAT Power Supply Range2.7-4.8V
VIN Power Supply Range4.5 ~ 5.5V
Abs. VIN(Max)14V
LDOs & RegulatorSPWR
Charge TopologyLinear
Charge Voltage Range1.5 ~ 4.8V
Charge Current(Max)720mA
Boost current(Max)-
Boost Voltage Range-
Code Flash Size (kB)12
Code Flash TypeOTP
Data Flash or EEPROM Size(B)-
RAM Size (B)192
Operating Frequency (MHz)12
Timers3
Other timer functionsWDG
Number of PWMs6
Number of A/D Converters1
Number of ADC channels8
I/Os12
I2C1
UART1
SPI-
Other PeripheralsSegment LCD,ACMP,PFO,NTC,EINT
