SHP8808

Synchronous, 80V Bi-directional Buck-Boost Charger Controller with I2C interface and MPPT

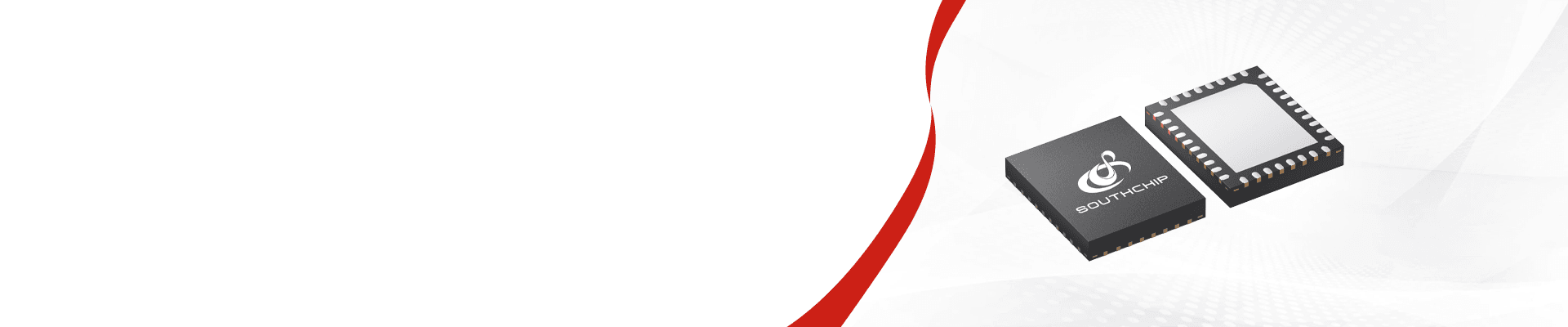

SHP8808SHP8808

SHP8808

Synchronous, 80V Bi-directional Buck-Boost Charger Controller with I2C interface and MPPT

SHP8808 is a synchronous buck-boost charger, which supports buck mode, boost mode and buck-boost mode during forward charging or reverse discharging operation. SHP8808 manages multi types of battery charging from wide input range from 4.5V to 80V, supporting trickle charge, pre-charge, constant current charge, constant voltage charge and autonomous termination. The battery discharging mode supports wide output range from 5V to 48V. SHP8808 also provides input current and battery current monitoring function. Through I2C interface, user can set the charging/discharging mode easily, and program the charging current, charging voltage, input voltage regulation, input current limit, OTG output voltage adjustment, current limits and other parameters flexibly. Besides, input/output current limit, charge voltage/discharging voltage, and switching frequency could be set by external resistors. SHP8808 supports frequency dithering to meet better EMI performance and integrates synchronization feature to switching under same frequency with external clock. SHP8808 integrates 11-bit ADC to monitor voltage, current. Full protection is supported including input and battery over_voltage protection, input over-current, over-temperature protection. SHP8808 is available in a 5mm x 6mm QFN-36 Package.
SHP8808
SHP8808 is a synchronous buck-boost charger, which supports buck mode, boost mode and buck-boost mode during forward charging or reverse discharging operation. SHP8808 manages multi types of battery charging from wide input range from 4.5V to 80V, supporting trickle charge, pre-charge, constant current charge, constant voltage charge and autonomous termination. The battery discharging mode supports wide output range from 5V to 48V. SHP8808 also provides input current and battery current monitoring function. Through I2C interface, user can set the charging/discharging mode easily, and program the charging current, charging voltage, input voltage regulation, input current limit, OTG output voltage adjustment, current limits and other parameters flexibly. Besides, input/output current limit, charge voltage/discharging voltage, and switching frequency could be set by external resistors. SHP8808 supports frequency dithering to meet better EMI performance and integrates synchronization feature to switching under same frequency with external clock. SHP8808 integrates 11-bit ADC to monitor voltage, current. Full protection is supported including input and battery over_voltage protection, input over-current, over-temperature protection. SHP8808 is available in a 5mm x 6mm QFN-36 Package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
VIN range4.5-80V
Abs. VIN (max)88V
Battery Cell1~16s
MOSext.
Charge Current (max)50A
TopologyBuck-boost
OTG voltage5-80V
Prog. OTG voltageFB/I2C
Parameter NameParameter Value
Max. OTG current50A
Rec’d app. power level1200W typ.
I2C Ctrl√
Prog. IlimI2C prog or ext. res
ADC11-bit
NTC√
FeaturesMPPT Status Indication
PackageQFN 5x6
Parameter NameParameter Value
VIN range4.5-80V
Abs. VIN (max)88V
Battery Cell1~16s
MOSext.
Charge Current (max)50A
TopologyBuck-boost
OTG voltage5-80V
Prog. OTG voltageFB/I2C
Max. OTG current50A
Rec’d app. power level1200W typ.
I2C Ctrl√
Prog. IlimI2C prog or ext. res
ADC11-bit
NTC√
FeaturesMPPT Status Indication
PackageQFN 5x6
