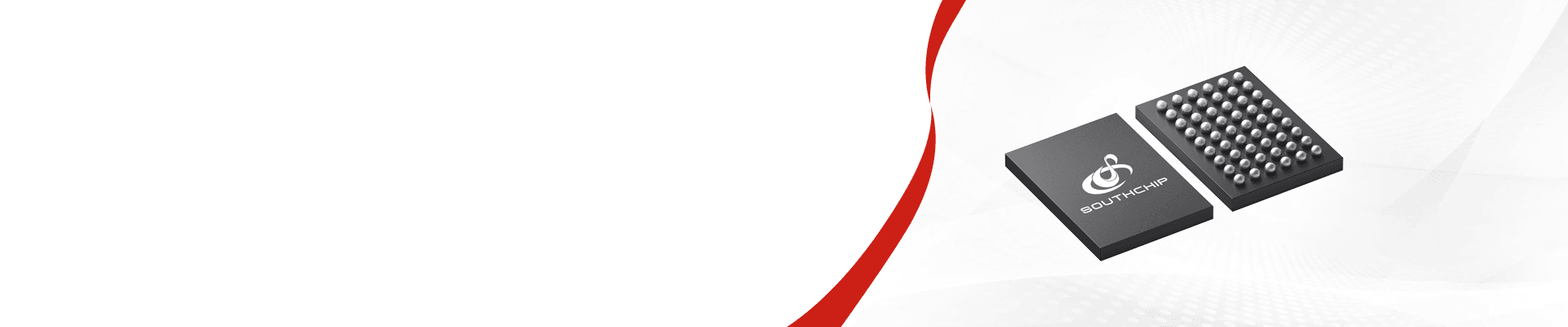

SC9624

15W Highly Integrated Wireless RTx

SC9624SC9624

SC9624

15W Highly Integrated Wireless RTx

The SC9624 is a highly-integrated and efficient single-chip wireless power receiver/transmitter IC (RTx). The SC9624 integrates a high efficiency synchronous fullbridge rectifier with ultra-low RDS to convert the AC power signal from a wireless transmitter to DC power and a programmable low-dropout LDO allowing for high efficiency and system optimization.
SC9624
The SC9624 is a highly-integrated and efficient single-chip wireless power receiver/transmitter IC (RTx). The SC9624 integrates a high efficiency synchronous fullbridge rectifier with ultra-low RDS to convert the AC power signal from a wireless transmitter to DC power and a programmable low-dropout LDO allowing for high efficiency and system optimization.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
Pout_max15W
ProtocolQI1.3
Vrect range4.5V ~ 17V
Vout range4.5V ~ 15V
Abs. Vrect (max)27V
SR Rdson4* 35mΩ
Parameter NameParameter Value
MLDO Rdson50mΩ
MTP32kB
ADC resolution12bit
IQ8mA
TX mode√
PackageWLCSP-54 2.875mm x 4.035mm
Parameter NameParameter Value
Pout_max15W
ProtocolQI1.3
Vrect range4.5V ~ 17V
Vout range4.5V ~ 15V
Abs. Vrect (max)27V
SR Rdson4* 35mΩ
MLDO Rdson50mΩ
MTP32kB
ADC resolution12bit
IQ8mA
TX mode√
PackageWLCSP-54 2.875mm x 4.035mm
