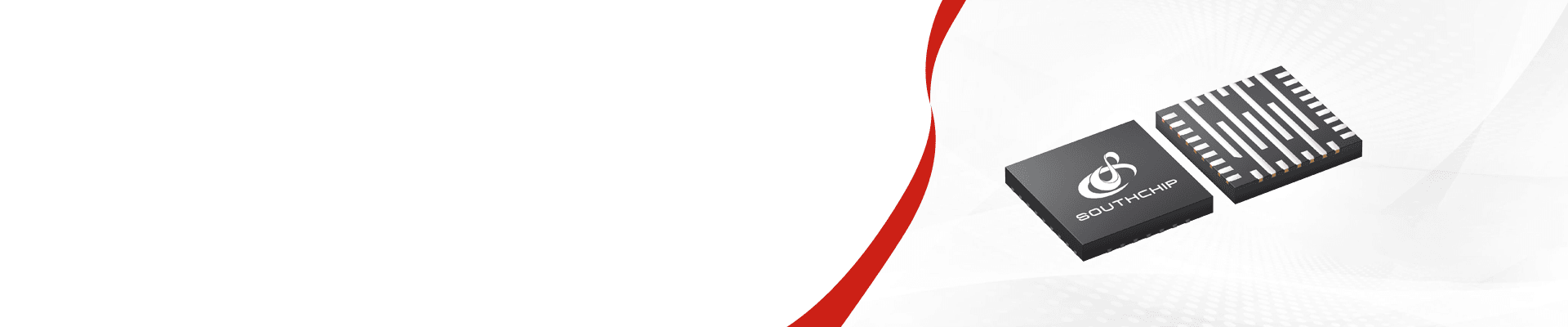

SC96019

25W Wireless Power Transmitter SOC

SC96019SC96019

SC96019

25W Wireless Power Transmitter SOC

The SC96019 is a highly integrated wireless power transmitter IC including a digital microcontroller and a power stage. The microcontroller includes a high performance 32-bit digital core, rich memory and peripherals. The power stage includes a full-bridge inverter, current sense amplifier, communication demodulator, linear regulator and multiple protection circuit.
SC96019
The SC96019 is a highly integrated wireless power transmitter IC including a digital microcontroller and a power stage. The microcontroller includes a high performance 32-bit digital core, rich memory and peripherals. The power stage includes a full-bridge inverter, current sense amplifier, communication demodulator, linear regulator and multiple protection circuit.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
Pout_max25W
ProtocolQI1.3/2.0
Pvin range2~20V
Avin range3~20V
Abs. SW (max)22V
Rdson4* 12mΩ
Parameter NameParameter Value
MCU32Bit
MTP32kB
ADC resolution12bits
IQ9mA
PackageFCQFN32 4mm * 4mm
Parameter NameParameter Value
Pout_max25W
ProtocolQI1.3/2.0
Pvin range2~20V
Avin range3~20V
Abs. SW (max)22V
Rdson4* 12mΩ
MCU32Bit
MTP32kB
ADC resolution12bits
IQ9mA
PackageFCQFN32 4mm * 4mm
