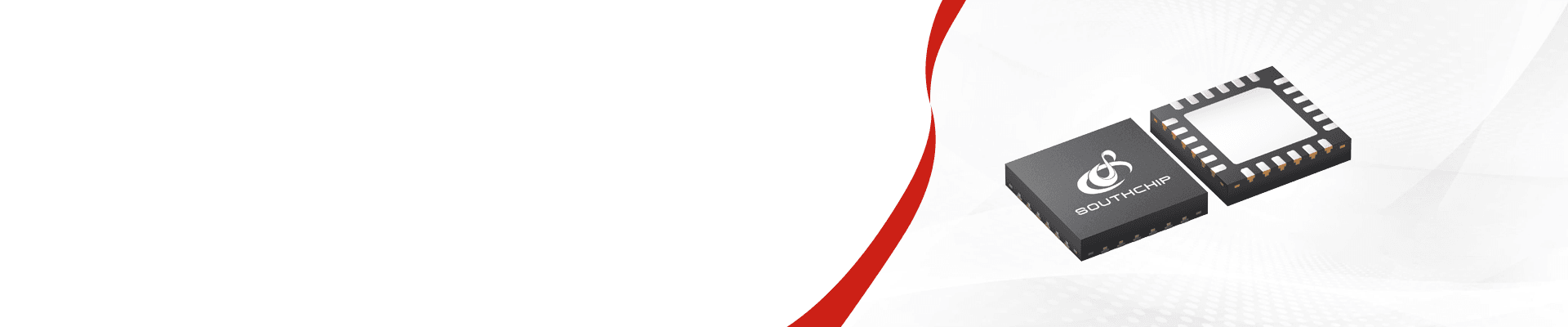

SC89890H

High Efficiency, Synchronous 5A Buck Charger for 1 cell Li-ion Battery with NVDC Power Path Management

SC89890HSC89890H

SC89890H

The SC89890H is a 1.5MHz highly integrated switch-mode buck charger for 1 cell Li-ion battery applications and NVDC system power path management, which separate the system load and charge current, also the system can power up with deep depletion battery. System can get the power from VBUS, VBAT or both. It supports 3.9-13.5V input voltage, up to 5A charging current and provide battery charge management functions including trickle charge, constant current charge, constant voltage charge, charge termination, auto recharge and charging status indication. The SC89890H supports flexible charge current option, and the user can program the current freely through external resistor for different applications. With the charger management function, the IC can be used to charge 1 cell Li-ion battery. The SC89890H supports USB OTG with up to 2.4A output with PFM/PWM mode. Meanwhile, the SC89890H supports USB Input and High Voltage fast charge Adapters, auto detect USB BC1.2, SDP, CDP, DCP. The SC89890H supports input current and voltage limit, input under voltage and over voltage protections, internal cycle by cycle current limit, battery short circuit protection, and output over voltage protection. It also offers charging safety timer and over temperature protection to ensure safety under different abnormal conditions. The SC89890H integrated all MOSFETs, current sensing, loop compensation and I2C interface. The SC89890H is available in QFN(24)-4*4 package.
SC89890H
The SC89890H is a 1.5MHz highly integrated switch-mode buck charger for 1 cell Li-ion battery applications and NVDC system power path management, which separate the system load and charge current, also the system can power up with deep depletion battery. System can get the power from VBUS, VBAT or both. It supports 3.9-13.5V input voltage, up to 5A charging current and provide battery charge management functions including trickle charge, constant current charge, constant voltage charge, charge termination, auto recharge and charging status indication. The SC89890H supports flexible charge current option, and the user can program the current freely through external resistor for different applications. With the charger management function, the IC can be used to charge 1 cell Li-ion battery. The SC89890H supports USB OTG with up to 2.4A output with PFM/PWM mode. Meanwhile, the SC89890H supports USB Input and High Voltage fast charge Adapters, auto detect USB BC1.2, SDP, CDP, DCP. The SC89890H supports input current and voltage limit, input under voltage and over voltage protections, internal cycle by cycle current limit, battery short circuit protection, and output over voltage protection. It also offers charging safety timer and over temperature protection to ensure safety under different abnormal conditions. The SC89890H integrated all MOSFETs, current sensing, loop compensation and I2C interface. The SC89890H is available in QFN(24)-4*4 package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value
EVM Model
SC89890H EVM
Key Part Number
SC89890H
Input Voltage
3.9V-13.5V
Number of Battery Sections
1
Maximum charging current
5A
ADC
8bit 8Channel

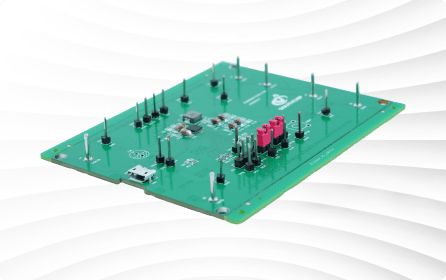

SC89890H EVM

Technical Documentation

Parameter NameParameter Value
VIN range3.9-13.5V
Abs. VIN (max)22V
Battery Cell #1s
MOSInt
Charge Current (max)5A
TopologyBuck
OTG Voltage Range3.9-5.4V
Prog. OTG VoltageI2C prog
Max. OTG Current2.4A
Parameter NameParameter Value
Rec’d app. Power Level24W typ. For 1S
I2C Ctrl√
Prog. IlimI2C&Res prog
ADC7-bit
NTC√
Safety Timer√
Power√
FeaturesThermal Regulation/DPDM Detection/OTG output from VBUS
PackageQFN4x4
Parameter NameParameter Value
VIN range3.9-13.5V
Abs. VIN (max)22V
Battery Cell #1s
MOSInt
Charge Current (max)5A
TopologyBuck
OTG Voltage Range3.9-5.4V
Prog. OTG VoltageI2C prog
Max. OTG Current2.4A
Rec’d app. Power Level24W typ. For 1S
I2C Ctrl√
Prog. IlimI2C&Res prog
ADC7-bit
NTC√
Safety Timer√
Power√
FeaturesThermal Regulation/DPDM Detection/OTG output from VBUS
PackageQFN4x4
