SC89620

I2C Controlled, Maximum 13.5V Input, Charger with NVDC Power Path Management and OTG Output

SC89620SC89620

SC89620

I2C Controlled, Maximum 13.5V Input, Charger with NVDC Power Path Management and OTG Output

The SC89620 is a 1.5MHz highly integrated switch-mode buck charger for 1 cell Li-ion battery applications and NVDC system power path management, which separate the system load and charge current, also the system can power up with deep depletion battery. System can get the power from VBUS, VBAT or both. It supports 3.9-13.5V input voltage, up to 3.5A charging current and provide battery charge management functions including trickle charge, constant current charge, constant voltage charge, charge termination, auto recharge and charging status indication.
SC89620
The SC89620 is a 1.5MHz highly integrated switch-mode buck charger for 1 cell Li-ion battery applications and NVDC system power path management, which separate the system load and charge current, also the system can power up with deep depletion battery. System can get the power from VBUS, VBAT or both. It supports 3.9-13.5V input voltage, up to 3.5A charging current and provide battery charge management functions including trickle charge, constant current charge, constant voltage charge, charge termination, auto recharge and charging status indication.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value
EVM Model
SC89620 EVM
Key Part Number
SC89620
Input Voltage
3.9V-13.5V
Number of Battery Sections
1
Maximum charging current
3.5A
Max OTG Discharging Current
2.45A

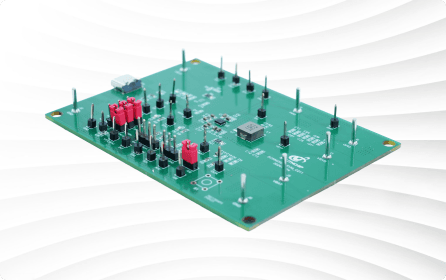

SC89620 EVM

Technical Documentation

Parameter NameParameter Value
VIN range3.9-13.5V
Abs. VIN (max)25V
Battery Cell #1s
MOSInt
Charge Current (max)3.5A
TopologyBuck
OTG Voltage Range4-5.6V
Prog. OTG VoltageI2C prog
Max. OTG Current2A
Parameter NameParameter Value
Rec’d app. Power Level15W typ. For 1S
I2C Ctrl√
Prog. IlimI2C&Res prog
ADC8-bit
NTC√
Safety Timer√
Power√
FeaturesLow Iq/Thermal Regulation/DPDM Detection/OTG output from VBUS
PackageQFN(18)-3*2.5
Parameter NameParameter Value
VIN range3.9-13.5V
Abs. VIN (max)25V
Battery Cell #1s
MOSInt
Charge Current (max)3.5A
TopologyBuck
OTG Voltage Range4-5.6V
Prog. OTG VoltageI2C prog
Max. OTG Current2A
Rec’d app. Power Level15W typ. For 1S
I2C Ctrl√
Prog. IlimI2C&Res prog
ADC8-bit
NTC√
Safety Timer√
Power√
FeaturesLow Iq/Thermal Regulation/DPDM Detection/OTG output from VBUS
PackageQFN(18)-3*2.5
