SC8958

High Efficiency, Synchronous 3A Buck Charger for 1 cell Li-ion or LiFePO4 Battery with NVDC Power Path Management

SC8958SC8958

SC8958

High Efficiency, Synchronous 3A Buck Charger for 1 cell Li-ion or LiFePO4 Battery with NVDC Power Path Management

The SC8958 is a 1.5MHz highly integrated switch-mode buck charger for 1 cell Li-ion or LiFePO4 battery applications and NVDC system power path management, which separate the system load and charge current, also the system can power up with deep depletion battery. System can get the power from VBUS, VBAT or both. It supports 3.9-13.5V input voltage, up to 3A charging current and provide battery charge management functions including trickle charge, constant current charge, constant voltage charge, charge termination, auto recharge and charging status indication.
SC8958
The SC8958 is a 1.5MHz highly integrated switch-mode buck charger for 1 cell Li-ion or LiFePO4 battery applications and NVDC system power path management, which separate the system load and charge current, also the system can power up with deep depletion battery. System can get the power from VBUS, VBAT or both. It supports 3.9-13.5V input voltage, up to 3A charging current and provide battery charge management functions including trickle charge, constant current charge, constant voltage charge, charge termination, auto recharge and charging status indication.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
VIN range3.9-13.5V
Abs. VIN (max)21V
Battery Cell #1s
MOSInt
Charge Current (max)3A
TopologyBuck
OTG Voltage Range3.9-5.4V
Prog. OTG VoltageI2C prog
Max. OTG Current1.2A
Parameter NameParameter Value
Rec’d app. Power Level15W typ. For 1S
I2C Ctrl√
Prog. IlimI2C
NTC√
Safety Timer√
Power√
FeaturesThermal Regulation OTG output from VBUS /Qon

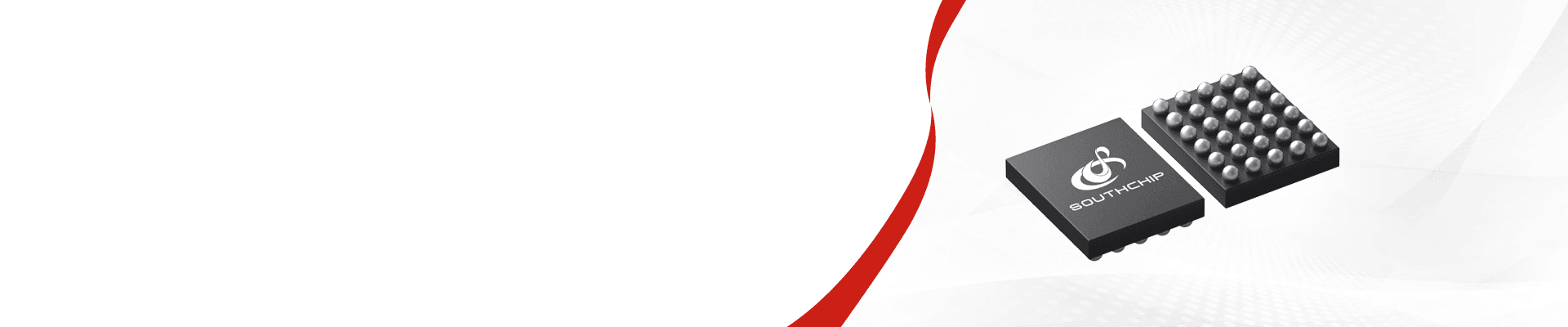

PackageCSP-30
Parameter NameParameter Value
VIN range3.9-13.5V
Abs. VIN (max)21V
Battery Cell #1s
MOSInt
Charge Current (max)3A
TopologyBuck
OTG Voltage Range3.9-5.4V
Prog. OTG VoltageI2C prog
Max. OTG Current1.2A
Rec’d app. Power Level15W typ. For 1S
I2C Ctrl√
Prog. IlimI2C
NTC√
Safety Timer√
Power√
FeaturesThermal Regulation OTG output from VBUS /Qon
PackageCSP-30
