High Efficiency, Synchronous 5A Buck Charger for 1 cell Li-ion Battery with NVDC Power Path Management
SC8950A
High Efficiency, Synchronous 5A Buck Charger for 1 cell Li-ion Battery with NVDC Power Path Management
The SC8950A is a 1.5MHz highly integrated switch-mode buck charger for 1 cell Li-ion battery applications and NVDC system power path management, which separate the system load and charge current, also the system can power up with deep depletion battery. System can get the power from VBUS, VBAT or both. It supports 3.9-13.5V input voltage, up to 5A charging current and provide battery charge management functions including trickle charge, constant current charge, constant voltage charge, charge termination, auto recharge and charging status indication.
The SC8950A is a 1.5MHz highly integrated switch-mode buck charger for 1 cell Li-ion battery applications and NVDC system power path management, which separate the system load and charge current, also the system can power up with deep depletion battery. System can get the power from VBUS, VBAT or both. It supports 3.9-13.5V input voltage, up to 5A charging current and provide battery charge management functions including trickle charge, constant current charge, constant voltage charge, charge termination, auto recharge and charging status indication.
Product Details
Design / Development
Technical Documentation
Applications
Product Details
Technical Documentation
Parameter NameParameter Value
VIN range3.9-13.5V
Abs. VIN (max)22V
Battery Cell #1s
MOSInt
Charge Current (max)5A
TopologyBuck
OTG Voltage Range3.9-5.4V
Prog. OTG VoltageI2C prog
Max. OTG Current2.4A
Parameter NameParameter Value
Rec’d app. Power Level24W typ. For 1S
I2C Ctrl√
Prog. IlimI2C&Res prog
ADC7-bit
NTC√
Safety Timer√
Power√
FeaturesThermal Regulation/DPDM Detection/OTG output from VBUS

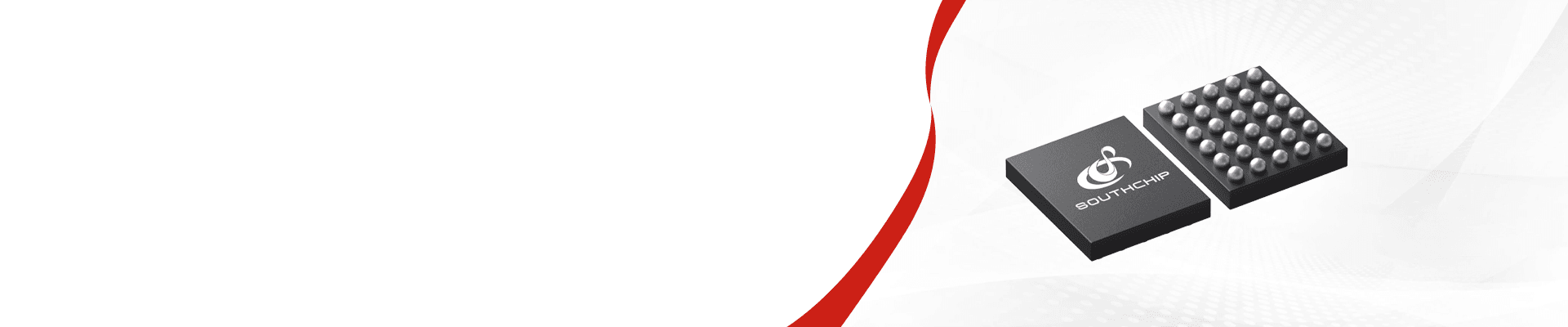

PackageCSP-30
Parameter NameParameter Value
VIN range3.9-13.5V
Abs. VIN (max)22V
Battery Cell #1s
MOSInt
Charge Current (max)5A
TopologyBuck
OTG Voltage Range3.9-5.4V
Prog. OTG VoltageI2C prog
Max. OTG Current2.4A
Rec’d app. Power Level24W typ. For 1S
I2C Ctrl√
Prog. IlimI2C&Res prog
ADC7-bit
NTC√
Safety Timer√
Power√
FeaturesThermal Regulation/DPDM Detection/OTG output from VBUS
