SC8921

High Efficiency, Synchronous Boost Charger for 2 cell Li ion Battery

SC8921SC8921

SC8921

The SC8921 is a highly integrated switch-mode boost charger for two cell Li-ion battery applications. It is able to step up 4.5V~5.5V input voltage to up to 16V, and provide battery charge management functions including trickle charge, constant current charge, constant voltage charge, charge termination and charging status indication. The SC8921 supports flexible charge current option, and the user can program the current freely through external resistor for different applications. With the charger management function, the IC can be used to charge 2 cell Li-ion battery. The SC8921 supports 2A input current limit, input under voltage and over voltage protections, internal cycle by cycle current limit, battery short circuit protection, and output over voltage protection. It also offers charging safety timer and over temperature protection to ensure safety under different abnormal conditions. The SC8921 is available in ESOP8L package.
SC8921
The SC8921 is a highly integrated switch-mode boost charger for two cell Li-ion battery applications. It is able to step up 4.5V~5.5V input voltage to up to 16V, and provide battery charge management functions including trickle charge, constant current charge, constant voltage charge, charge termination and charging status indication. The SC8921 supports flexible charge current option, and the user can program the current freely through external resistor for different applications. With the charger management function, the IC can be used to charge 2 cell Li-ion battery. The SC8921 supports 2A input current limit, input under voltage and over voltage protections, internal cycle by cycle current limit, battery short circuit protection, and output over voltage protection. It also offers charging safety timer and over temperature protection to ensure safety under different abnormal conditions. The SC8921 is available in ESOP8L package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
VIN range4.5-5.5V
Abs. VIN (max)16V
Battery Cell #2-3s
MOSint.
Charge Current (max)1.6A
Parameter NameParameter Value
TopologyBoost
Rec’d app. power level10W
Safety Timer24Hr

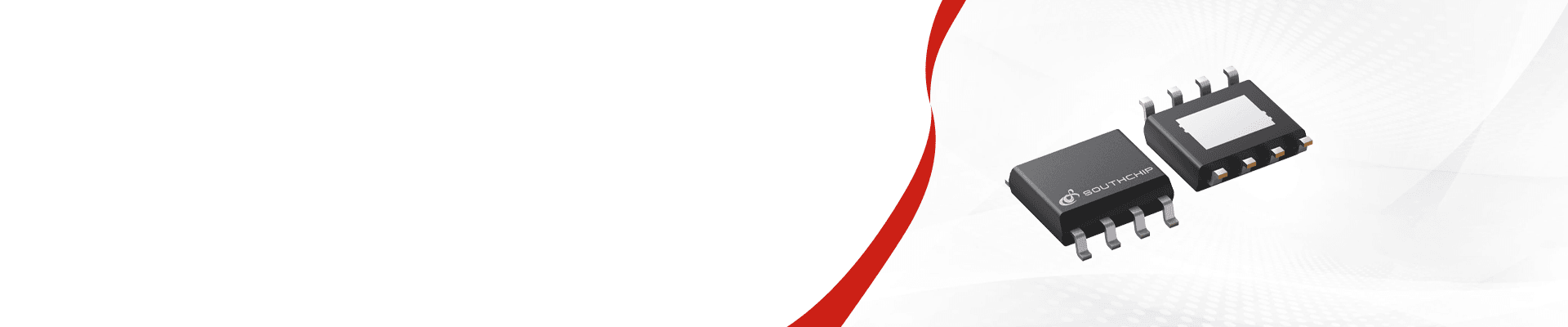

PackageESOP-8
Parameter NameParameter Value
VIN range4.5-5.5V
Abs. VIN (max)16V
Battery Cell #2-3s
MOSint.
Charge Current (max)1.6A
TopologyBoost
Rec’d app. power level10W
Safety Timer24Hr
PackageESOP-8
