High Efficiency, Synchronous, Bi directional Buck Charger Controller with I2C Interface

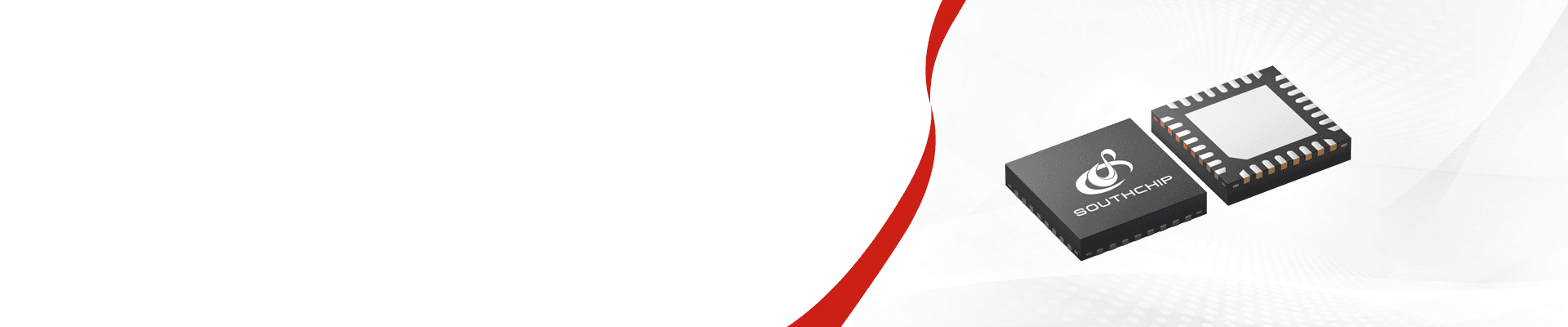

SC8813
High Efficiency, Synchronous, Bi directional Buck Charger Controller with I2C Interface
SC8813 is a synchronous buck charger controller with reverse boost discharging function. It supports very wide input and output voltage range, suitable for applications of 1 to 4-cell Li-ion battery. In charging mode, it steps down the input voltage and effectively charging the batteries as long as the input voltage is higher than battery voltage. SC8813 supports trickle charging, constant current (CC) charging and constant voltage (CV) charging management functions automatically. In discharging mode (reverse boost mode), SC8813 is able to output a boosted voltage up to 36V effectively. The SC8813 features I2C interface, so the user can easily set the charging/discharging mode and program the input current limit, output current limit and output voltage through I2C. It also supports DP/DM handshaking, the adapter insert detection function, load insert detection function, small current detection. Meantime, it offers a PMOS gate driver for external power path control, an open drain output for general purpose, and also a 10-bit ADC resource. The user can control all these functions through I2C. All these features help simplify the system design and reduce the BOM. The SC8813 supports under voltage lockout, over voltage protection, over current protection, short circuit warning and over temperature protections to ensure safety under different abnormal conditions. SC8813 adopts 32 pin QFN 4x4 package.
SC8813 is a synchronous buck charger controller with reverse boost discharging function. It supports very wide input and output voltage range, suitable for applications of 1 to 4-cell Li-ion battery. In charging mode, it steps down the input voltage and effectively charging the batteries as long as the input voltage is higher than battery voltage. SC8813 supports trickle charging, constant current (CC) charging and constant voltage (CV) charging management functions automatically. In discharging mode (reverse boost mode), SC8813 is able to output a boosted voltage up to 36V effectively. The SC8813 features I2C interface, so the user can easily set the charging/discharging mode and program the input current limit, output current limit and output voltage through I2C. It also supports DP/DM handshaking, the adapter insert detection function, load insert detection function, small current detection. Meantime, it offers a PMOS gate driver for external power path control, an open drain output for general purpose, and also a 10-bit ADC resource. The user can control all these functions through I2C. All these features help simplify the system design and reduce the BOM. The SC8813 supports under voltage lockout, over voltage protection, over current protection, short circuit warning and over temperature protections to ensure safety under different abnormal conditions. SC8813 adopts 32 pin QFN 4x4 package.
Product Details
Design / Development
Technical Documentation
Applications
Product Details
Technical Documentation
Parameter NameParameter Value
VIN range4.5-36V
Abs. VIN (max)40V
Battery Cell #1-4s
MOSext.
Charge Current (max)10A+
TopologyBuck
OTG Voltage RangeVBAT-36V
Prog. OTG VoltageI2C prog.
Parameter NameParameter Value
Max. OTG Current5A+
Rec’d app. Power Level24W typ. For 1S
I2C Ctrl√
Prog. IlimI2C prog.
ADC10-bit
FeaturesFast-IN-Charge (DPDM)
Event detection and port pwr. path ctrl
PackageQFN 4x4
Parameter NameParameter Value
VIN range4.5-36V
Abs. VIN (max)40V
Battery Cell #1-4s
MOSext.
Charge Current (max)10A+
TopologyBuck
OTG Voltage RangeVBAT-36V
Prog. OTG VoltageI2C prog.
Max. OTG Current5A+
Rec’d app. Power Level24W typ. For 1S
I2C Ctrl√
Prog. IlimI2C prog.
ADC10-bit
FeaturesFast-IN-Charge (DPDM)
Event detection and port pwr. path ctrl
