SC8742B

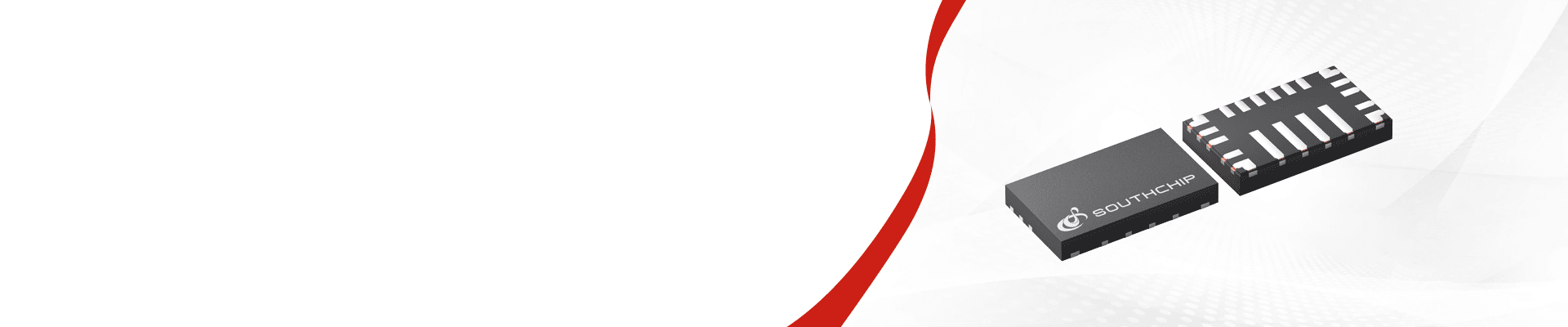

SC8742B 36V / 100W Buck-Boost Converter with Low-Side MOSFETs Integrated and I2C Interface

SC8742BSC8742B

SC8742B

SC8742B 36V / 100W Buck-Boost Converter with Low-Side MOSFETs Integrated and I2C Interface

The SC8742B is a buck-boost converter with two low-side integrated power switches capable of regulating the output voltage at, above, or below the input voltage. The SC8742B operates over 3.7V to 36V wide input voltage and can output 1V to 22V voltage to support a variety of applications. The SC8742B is suitable for USB power delivery application. It can work well with external USB PD controller through I2C interface and provide flexibility of programmable features. The SC8742B employs current mode control scheme. The switching frequency could be set at 270kHz/405kHz/540kHz through I2C. The SC8742B also provides optional spread spectrum to optimize EMI performance. The SC8742B offers output over-voltage protection, cycle-by-cycle current limit, output short circuit protection, average output current limit and thermal shutdown protection. The SC8742B is available in 20-pin 3mm X 5mm Wettable Flank QFN packages.
SC8742B
The SC8742B is a buck-boost converter with two low-side integrated power switches capable of regulating the output voltage at, above, or below the input voltage. The SC8742B operates over 3.7V to 36V wide input voltage and can output 1V to 22V voltage to support a variety of applications. The SC8742B is suitable for USB power delivery application. It can work well with external USB PD controller through I2C interface and provide flexibility of programmable features. The SC8742B employs current mode control scheme. The switching frequency could be set at 270kHz/405kHz/540kHz through I2C. The SC8742B also provides optional spread spectrum to optimize EMI performance. The SC8742B offers output over-voltage protection, cycle-by-cycle current limit, output short circuit protection, average output current limit and thermal shutdown protection. The SC8742B is available in 20-pin 3mm X 5mm Wettable Flank QFN packages.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value
EVM Model
SC8742B EVM
Key Part Number
SC8742B
power rating
Integrated 2FET to support 100W power
sampling mode
Low Side Current Sampling

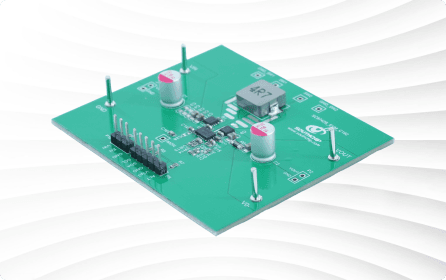

SC8742B EVM

Technical Documentation

Parameter NameParameter Value
VIN range4-36V
Abs. VIN (max)40V
VOUT range1-22V
Iout(Max)6A
MOSint. (2)
fsw280kHz/420kHz/560kHz
I2C Ctrl√
Parameter NameParameter Value
Prog. VoutI2C/FB
Constant Current Mode√
IOUT monitorIMON pin
PFM√
FPWM√
Features1μA Low Iq; Output Voltage Dynamic Control
PackageQFN 3x5
Parameter NameParameter Value
VIN range4-36V
Abs. VIN (max)40V
VOUT range1-22V
Iout(Max)6A
MOSint. (2)
fsw280kHz/420kHz/560kHz
I2C Ctrl√
Prog. VoutI2C/FB
Constant Current Mode√
IOUT monitorIMON pin
PFM√
FPWM√
Features1μA Low Iq; Output Voltage Dynamic Control
PackageQFN 3x5
