SC8723

High Efficiency, Synchronous, 3.5A Buck-Boost Converter with Four Integrated MOSFET

SC8723SC8723

SC8723

SC8723 is a synchronous 4-switch buck-boost converter with four integrated switches. It provides excellent power efficiency and voltage regulation no matter the output voltage is higher, lower, or equal to the input voltage. SC8723 supports a very wide input and output voltage range. It can support applications from 2.7V to 22V input range and 3V to 22V output range and provides up to 3.5A output current. SC8723 employs average current-mode control. The output voltage is adjusted by FB pin with resistors. The switching mode (PSM/FPWM) and the switching frequency can be adjusted by the external setting. The device also provides a programmable output current limit which supports flexible design for different applications. SC8723 supports internal current limit, input under-voltage protection, output over-voltage protection, output short protection, FB short circuit protection, and over-temperature protection to ensure safety under different abnormal conditions. The IC is in a 22 pin 3x3 QFN package.
SC8723
SC8723 is a synchronous 4-switch buck-boost converter with four integrated switches. It provides excellent power efficiency and voltage regulation no matter the output voltage is higher, lower, or equal to the input voltage. SC8723 supports a very wide input and output voltage range. It can support applications from 2.7V to 22V input range and 3V to 22V output range and provides up to 3.5A output current. SC8723 employs average current-mode control. The output voltage is adjusted by FB pin with resistors. The switching mode (PSM/FPWM) and the switching frequency can be adjusted by the external setting. The device also provides a programmable output current limit which supports flexible design for different applications. SC8723 supports internal current limit, input under-voltage protection, output over-voltage protection, output short protection, FB short circuit protection, and over-temperature protection to ensure safety under different abnormal conditions. The IC is in a 22 pin 3x3 QFN package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value
EVM Model
SC8723 EVM
Key Part Number
SC8723
Input Voltage
Supports 2.7V to 22V input
output voltage
Maximum 22V output, maximum 10A inductive current limiting

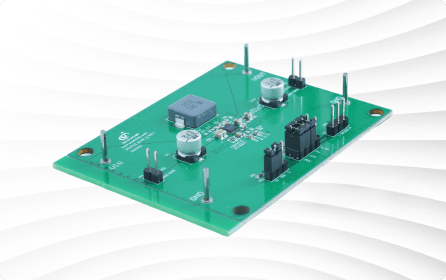

SC8723 EVM

Technical Documentation

Parameter NameParameter Value
VIN range2.7-22V
Abs. VIN (max)25V
VOUT range3-22V
Iout(Max)3.5A
MOSint.
fsw250kHz ~ 1MHz
Parameter NameParameter Value
Prog. VoutFB
Constant Current Mode√
PFM√
FPWM√
FeaturesNo External Current Sense Resistors
PackageQFN 3x3
Parameter NameParameter Value
VIN range2.7-22V
Abs. VIN (max)25V
VOUT range3-22V
Iout(Max)3.5A
MOSint.
fsw250kHz ~ 1MHz
Prog. VoutFB
Constant Current Mode√
PFM√
FPWM√
FeaturesNo External Current Sense Resistors
PackageQFN 3x3
