SC8708

Synchronous, 80V Bi-directional Buck-Boost Controller with I2C

SC8708SC8708

SC8708

Synchronous, 80V Bi-directional Buck-Boost Controller with I2C

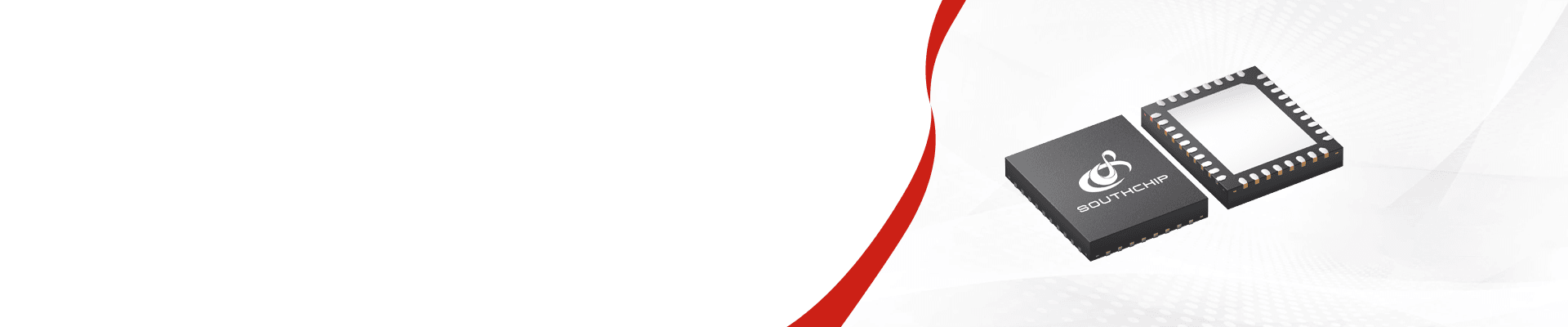

SC8708 is a synchronous buck-boost controller, which supports buck mode, boost mode and buck-boost mode. SC8708 has wide input range from 4.5V to 80V and wide output range from 5V to 80V. SC8708 also provides input current and output current monitoring function. Through I2C interface, user can program the output current limit, output voltage adjustment, and other parameters flexibly. Besides, the output current limit, output voltage and switching frequency could be set by external resistors. SC8708 supports frequency dithering to meet better EMI performance and integrates synchronization feature to switch under same frequency with external clock. SC8708 integrates 11-bit ADC to monitor voltage, current. Full protection is supported including input and output over_voltage protection, output over-current protection and over_temperature protection. SC8708 is available in a 5mm x 6mm QFN-36 Package.
SC8708
SC8708 is a synchronous buck-boost controller, which supports buck mode, boost mode and buck-boost mode. SC8708 has wide input range from 4.5V to 80V and wide output range from 5V to 80V. SC8708 also provides input current and output current monitoring function. Through I2C interface, user can program the output current limit, output voltage adjustment, and other parameters flexibly. Besides, the output current limit, output voltage and switching frequency could be set by external resistors. SC8708 supports frequency dithering to meet better EMI performance and integrates synchronization feature to switch under same frequency with external clock. SC8708 integrates 11-bit ADC to monitor voltage, current. Full protection is supported including input and output over_voltage protection, output over-current protection and over_temperature protection. SC8708 is available in a 5mm x 6mm QFN-36 Package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
VIN range4.5-80V
Abs. VIN (max)88V
VOUT range5-80V
Iout(Max)50A
MOSext.
fsw80kHz ~ 480kHz
I2C Ctrl√
Prog. VoutI2C/FB
Parameter NameParameter Value
Input ILIM√
Constant Current Mode√
IOUT monitorIMON pin
PFM√
FPWM√
FeaturesOutput Voltage Dynamic Control, 11-Bit ADC
PackageQFN 5x6
Parameter NameParameter Value
VIN range4.5-80V
Abs. VIN (max)88V
VOUT range5-80V
Iout(Max)50A
MOSext.
fsw80kHz ~ 480kHz
I2C Ctrl√
Prog. VoutI2C/FB
Input ILIM√
Constant Current Mode√
IOUT monitorIMON pin
PFM√
FPWM√
FeaturesOutput Voltage Dynamic Control, 11-Bit ADC
PackageQFN 5x6
