SC8703

High Efficiency, Synchronous Buck Boost Controller

SC8703SC8703

SC8703

The SC8703 is a synchronous 4-switch buck-boost controller. It is able to effectively output voltage no matter it is higher, lower or equal to the input voltage. The SC8703 supports very wide input and output voltage range. It can support applications from 2.7V to 29V input range. The driver voltage is set to 10V to fully utilize external MOSFETs for highest efficiency. The SC8703 supports input current limit, output current limit, dynamic adjustable input power, internal current limit, short current protection and over temperature protections to ensure safety under different abnormal conditions. The SC8703 adopts 32 pin QFN 4x4 package.
SC8703
The SC8703 is a synchronous 4-switch buck-boost controller. It is able to effectively output voltage no matter it is higher, lower or equal to the input voltage. The SC8703 supports very wide input and output voltage range. It can support applications from 2.7V to 29V input range. The driver voltage is set to 10V to fully utilize external MOSFETs for highest efficiency. The SC8703 supports input current limit, output current limit, dynamic adjustable input power, internal current limit, short current protection and over temperature protections to ensure safety under different abnormal conditions. The SC8703 adopts 32 pin QFN 4x4 package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value
EVM Model
SC8703 EVM
Key Part Number
SC8703
Input Voltage
Minimum input voltage setting
operating mode
No-load high efficiency mode

Technical Documentation

Parameter NameParameter Value
VIN range2.7-36V
Abs. VIN (max)40V
VOUT range2-36V
Iout(Max)5A~10A
MOSext.
fsw200kHz ~ 600kHz
Parameter NameParameter Value
Prog. VoutPWM
Input ILIM√
Constant Current Mode√
IOUT monitorILIM pin
PFM√

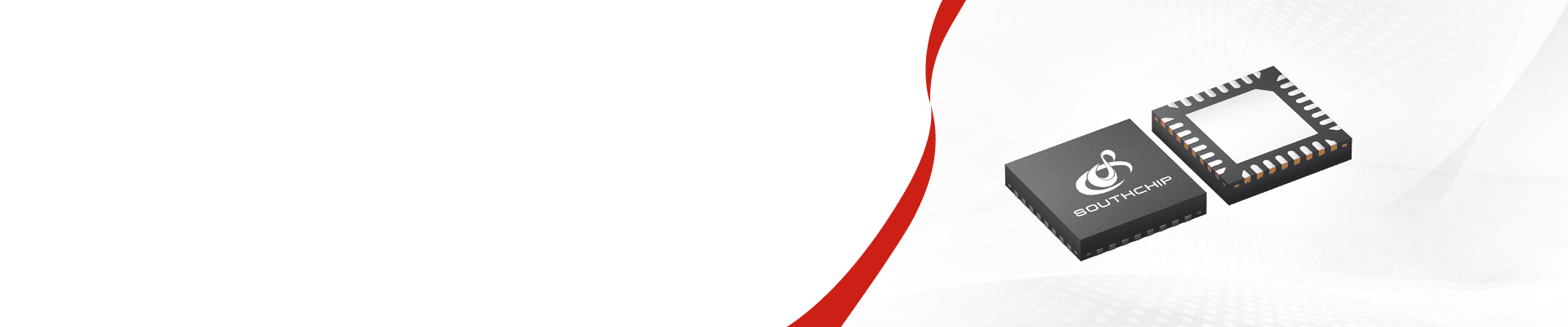

PackageQFN 4x4
Parameter NameParameter Value
VIN range2.7-36V
Abs. VIN (max)40V
VOUT range2-36V
Iout(Max)5A~10A
MOSext.
fsw200kHz ~ 600kHz
Prog. VoutPWM
Input ILIM√
Constant Current Mode√
IOUT monitorILIM pin
PFM√
PackageQFN 4x4
