SC8701

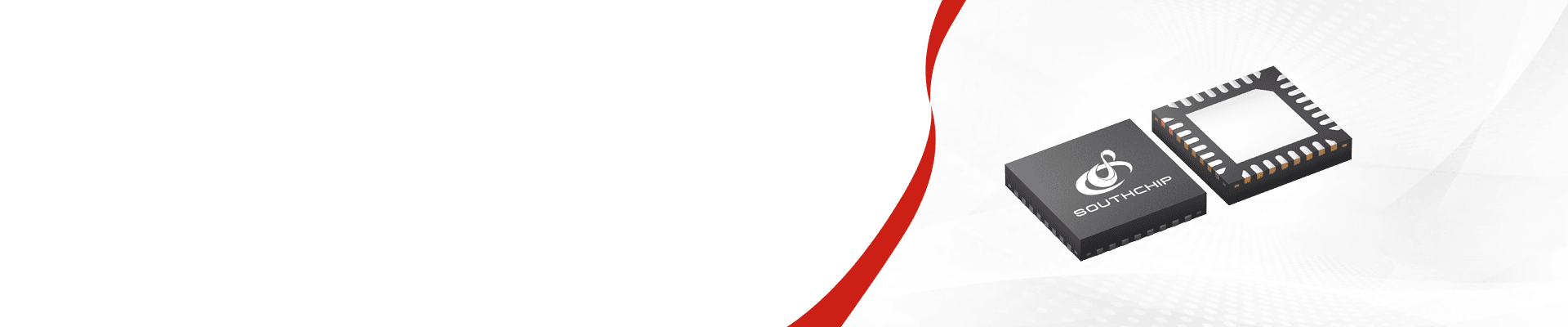

High Efficiency, Synchronous Buck Boost Controller

SC8701SC8701

SC8701

The SC8701 is a synchronous 4-switch buck-boost controller. It is able to effectively output voltage no matter it is higher, lower or equal to the input voltage. The SC8701 supports very wide input and output voltage range. It can support applications from 2.7V to 36V input range and 2V to 36V output range. The driver voltage is set to 10V to fully utilize external MOSFETs for highest efficiency. The SC8701 supports input current limit, output current limit and over temperature protections to ensure safety under different abnormal conditions. The SC8701 adopts 32 pin QFN 4x4 package.
SC8701
The SC8701 is a synchronous 4-switch buck-boost controller. It is able to effectively output voltage no matter it is higher, lower or equal to the input voltage. The SC8701 supports very wide input and output voltage range. It can support applications from 2.7V to 36V input range and 2V to 36V output range. The driver voltage is set to 10V to fully utilize external MOSFETs for highest efficiency. The SC8701 supports input current limit, output current limit and over temperature protections to ensure safety under different abnormal conditions. The SC8701 adopts 32 pin QFN 4x4 package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value
EVM Model
SC8701 EVM
Key Part Number
SC8701
Input Voltage
Supports input less than or greater than output voltage
output voltage
Dynamically adjustable voltage

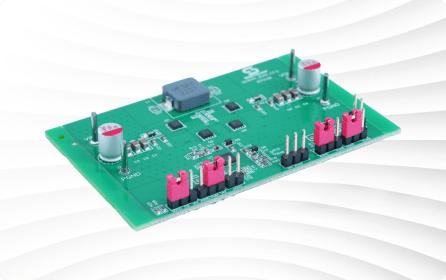

SC8701 EVM

Technical Documentation

Parameter NameParameter Value
VIN range2.7-36V
Abs. VIN (max)40V
VOUT range2-36V
Iout(Max)5A~10A
MOSext.
fsw200kHz ~ 600kHz
Parameter NameParameter Value
Prog. VoutPWM
Input ILIM√
Constant Current Mode√
IOUT monitorILIM pin
FPWM√
PackageQFN 4x4
Parameter NameParameter Value
VIN range2.7-36V
Abs. VIN (max)40V
VOUT range2-36V
Iout(Max)5A~10A
MOSext.
fsw200kHz ~ 600kHz
Prog. VoutPWM
Input ILIM√
Constant Current Mode√
IOUT monitorILIM pin
FPWM√
PackageQFN 4x4
