SC8571

2-Cell High Efficiency 8-A Switched Capacitor Direct Charger

SC8571SC8571

SC8571

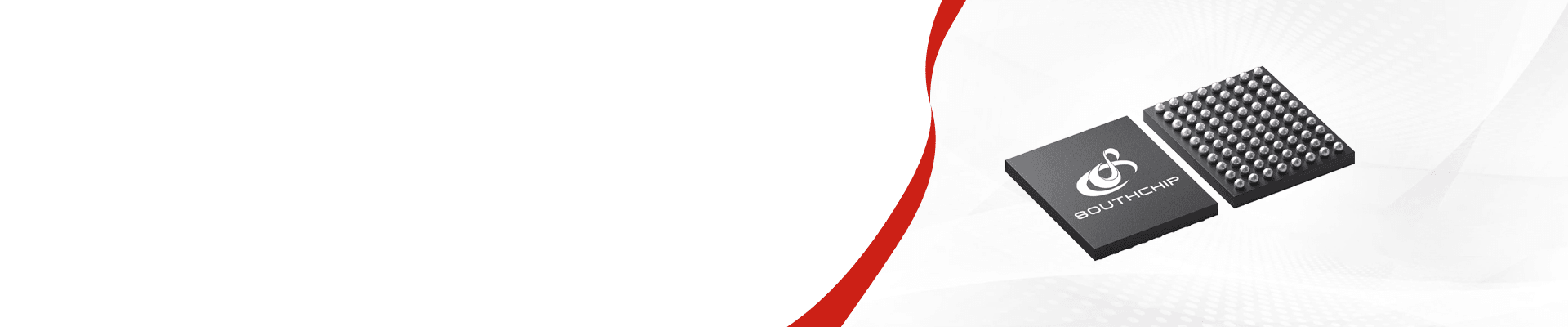

SC8571 is a 98.65% peak efficiency, 8-A battery charging solution using a switched cap architecture. The switched cap architecture and the integrated FETs are optimized for 50% duty cycle operation, allowing the cable current to be half the current delivered to the battery, reducing the losses over the charging cable as well as limiting the temperature rise in the application. SC8571 adopts 80 pin CSP 3.425mm X 4.151mm package.
SC8571
SC8571 is a 98.65% peak efficiency, 8-A battery charging solution using a switched cap architecture. The switched cap architecture and the integrated FETs are optimized for 50% duty cycle operation, allowing the cable current to be half the current delivered to the battery, reducing the losses over the charging cable as well as limiting the temperature rise in the application. SC8571 adopts 80 pin CSP 3.425mm X 4.151mm package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value
EVM Model
SC8571 EVM
Key Part Number
SC8571
Battery string number
double string battery
importation
Supports wireless wired dual input
efficiency
97.5%@12A

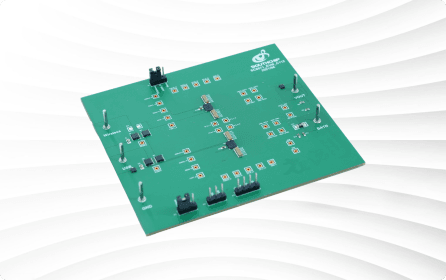

SC8571 EVM

Technical Documentation

Parameter NameParameter Value
Pout_Typ.80W
VBUS range6~22V
Abs. Vbus (max)28V
Vout range5.8~10V
Abs. Vout (max)11V
Parameter NameParameter Value
Max Charge Current10A
Typ. Quiescent Current20uA
ADC resolution12 bit
IBUS accuracy±5%
PackageWLCSP80-3.425mm X 4.151mm
Parameter NameParameter Value
Pout_Typ.80W
VBUS range6~22V
Abs. Vbus (max)28V
Vout range5.8~10V
Abs. Vout (max)11V
Max Charge Current10A
Typ. Quiescent Current20uA
ADC resolution12 bit
IBUS accuracy±5%
PackageWLCSP80-3.425mm X 4.151mm
