SC8329

20A Switching Current, Up to 17V Output, Synchronous Boost Converter with Isolation NMOS Driver

SC8329SC8329

SC8329

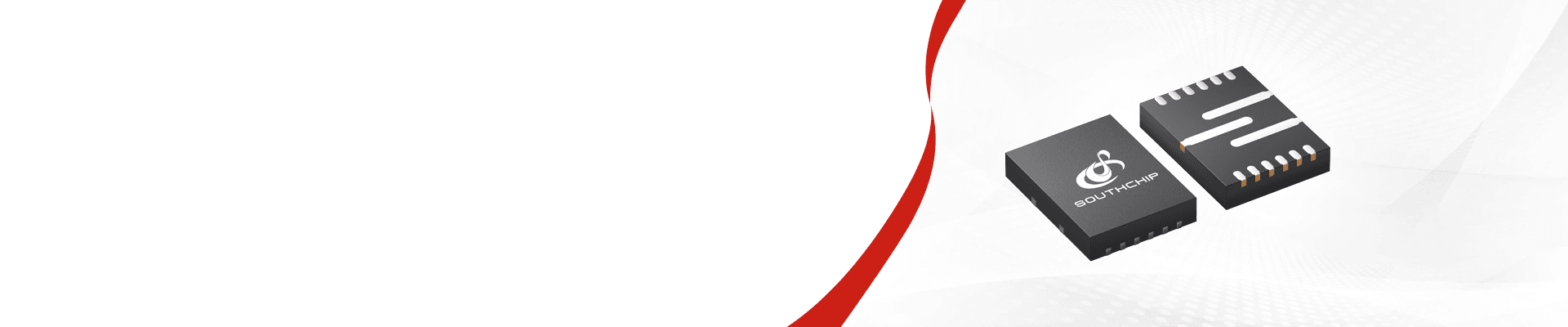

The SC8329 is a synchronous boost converter fully integrated with a 6 mΩ low side power switch and a 11 mΩ high side power switch. The SC8329 supports wide input range from 2.7 V to 13 V. It has 20A switch current capability and is capable of providing an output voltage to 17 V. The SC8329 adopts constant-off-time (COT) control topology, which provides fast transient response. It supports operating mode selection for PWM mode and PFM mode. The switching frequency is adjustable ranging from 200 kHz to 2.2 MHz by an external resistor. The SC8329 implements soft-start and an adjustable output current limit function. The SC8329 also supports full protections including input under-voltage lockout (UVLO), output over voltage protection at 17V (OVP), programmable cycle-by-cycle overcurrent protection (OCP) and thermal shutdown protection. Furthermore, the SC8329 contains an NMOS driver for short circuit protection. The SC8329 is available in FCQFN-15 package (4.0mm × 3.0mm).
SC8329
The SC8329 is a synchronous boost converter fully integrated with a 6 mΩ low side power switch and a 11 mΩ high side power switch. The SC8329 supports wide input range from 2.7 V to 13 V. It has 20A switch current capability and is capable of providing an output voltage to 17 V. The SC8329 adopts constant-off-time (COT) control topology, which provides fast transient response. It supports operating mode selection for PWM mode and PFM mode. The switching frequency is adjustable ranging from 200 kHz to 2.2 MHz by an external resistor. The SC8329 implements soft-start and an adjustable output current limit function. The SC8329 also supports full protections including input under-voltage lockout (UVLO), output over voltage protection at 17V (OVP), programmable cycle-by-cycle overcurrent protection (OCP) and thermal shutdown protection. Furthermore, the SC8329 contains an NMOS driver for short circuit protection. The SC8329 is available in FCQFN-15 package (4.0mm × 3.0mm).
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value
EVM Model
SC8329 EVM
Key Part Number
SC8329
importation
2.7V to 15V, 20A Max
exports
4.5V to 17V, frequency adjustable

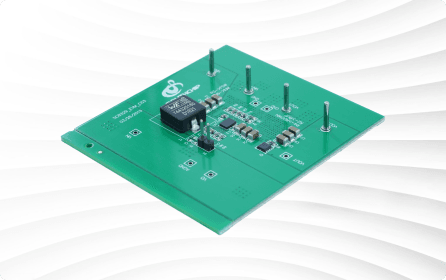

SC8329 EVM

Technical Documentation

Parameter NameParameter Value
VIN range2.7~13V
Abs. VIN (max)20V
VOUT rangeVIN~17V
MOSInt.
Fsw200kHz ~ 2.2MHz
Parameter NameParameter Value
Peak current limit20A
PFM√
FPWM√
Isolation MOS driver√
PackageQFN 4x3
Parameter NameParameter Value
VIN range2.7~13V
Abs. VIN (max)20V
VOUT rangeVIN~17V
MOSInt.
Fsw200kHz ~ 2.2MHz
Peak current limit20A
PFM√
FPWM√
Isolation MOS driver√
PackageQFN 4x3
