High-Efficiency 5.5V 2A Synchronous Buck Converter with Low
Quiescent Current in DFN1.6X1.6 Package
SC8106
High-Efficiency 5.5V 2A Synchronous Buck Converter with Low
Quiescent Current in DFN1.6X1.6 Package
SC8106 is a high-efficiency synchronous buck converter with few external components and is easy to use in compact applications. The device operates with input voltages from 2.3V to 5.5V with a typical switching frequency of 2.2MHz and supports output voltage from 0.6V to VIN. It integrates power MOSFETs and can support up to 2A load current. SC8106 can operate in 100% duty cycle to offer a low input to output voltage differential when the VIN is equal to VOUT. The device also features low quiescent current and PSM mode operation to maximize efficiency at light load. With PSM mode and low quiescent current during standby or light load, the device can further prolong battery life and is suitable for battery-powered applications. The device adopts a constant on-time control mode with internal compensation which features excellent load transient performance and supports low equivalent series resistance output capacitors such as ceramic (MLCC) capacitors. SC8106 provides protections including input under-voltage protection, cycle-by-cycle peak current limitation, and thermal shutdown protection with auto-recovery. SC8106 is available in DFN1.6X1.6 Package.
SC8106 is a high-efficiency synchronous buck converter with few external components and is easy to use in compact applications. The device operates with input voltages from 2.3V to 5.5V with a typical switching frequency of 2.2MHz and supports output voltage from 0.6V to VIN. It integrates power MOSFETs and can support up to 2A load current. SC8106 can operate in 100% duty cycle to offer a low input to output voltage differential when the VIN is equal to VOUT. The device also features low quiescent current and PSM mode operation to maximize efficiency at light load. With PSM mode and low quiescent current during standby or light load, the device can further prolong battery life and is suitable for battery-powered applications. The device adopts a constant on-time control mode with internal compensation which features excellent load transient performance and supports low equivalent series resistance output capacitors such as ceramic (MLCC) capacitors. SC8106 provides protections including input under-voltage protection, cycle-by-cycle peak current limitation, and thermal shutdown protection with auto-recovery. SC8106 is available in DFN1.6X1.6 Package.
Product Details
Design / Development
Technical Documentation
Applications
Product Details
Design / Development
Parameters
Value

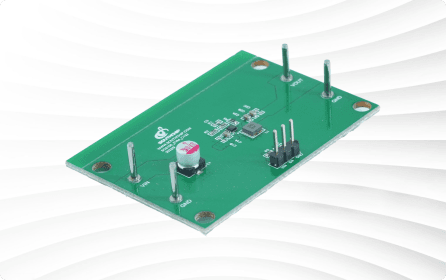

EVM Model
SC8106 EVM
Key Part Number
SC8106
operating mode
Very low quiescent current
Key Performance
Fast dynamic response
Technical Documentation
Parameter NameParameter Value
VIN range2.3-5.5V
Abs. VIN (max)6V
VOUT range0.6-VIN
Iout(max)2A
MOSInt.
Parameter NameParameter Value
fsw2.2MHz
Almost 100% mode√
PFM√
FeaturesLow Iq, COT with fast load transient, 100% duty cycle
PackageDFN 1.6x1.6
Parameter NameParameter Value
VIN range2.3-5.5V
Abs. VIN (max)6V
VOUT range0.6-VIN
Iout(max)2A
MOSInt.
fsw2.2MHz
Almost 100% mode√
PFM√
FeaturesLow Iq, COT with fast load transient, 100% duty cycle
