SC77401Q

Quad-Channel 160mΩ Smart High Side Driver with Advanced Protections

SC77401QSC77401Q

SC77401Q

Quad-Channel 160mΩ Smart High Side Driver with Advanced Protections

The SC77401Q is a fully-protected quad-channel smart high-side switch with integrated 160mΩ MOS power FETs. Full diagnostics and high-accuracy current-sense features enable intelligent control of the load.
SC77401Q
The SC77401Q is a fully-protected quad-channel smart high-side switch with integrated 160mΩ MOS power FETs. Full diagnostics and high-accuracy current-sense features enable intelligent control of the load.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value
EVM Model
SC77401Q EVM
Key Part Number
SC77401Q
Maximum working voltage
40V
channel number
4
on-resistance
160mΩ
Interface Type
I/O

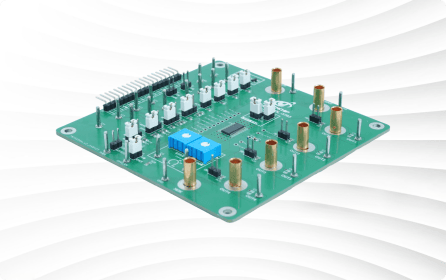

SC77401Q EVM
