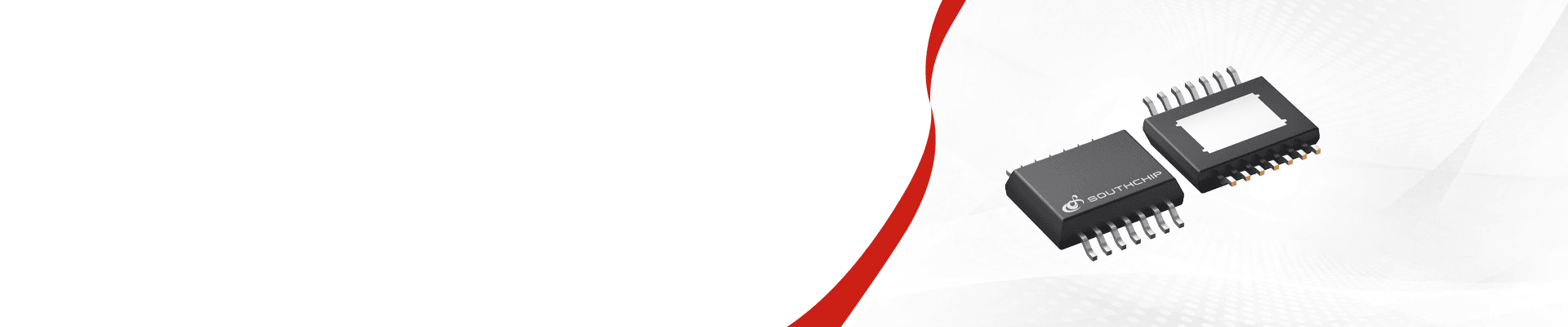

SC77220Q

Dual Channel 20-mΩ Smart High Side Driver with Advanced Protections and Diagnostics

SC77220QSC77220Q

SC77220Q

Dual Channel 20-mΩ Smart High Side Driver with Advanced Protections and Diagnostics

The SC7720Q is a fully-protected dual channel smart high side driver qualified in automotive grade. Full diagnostics and high accuracy current sense of each channel enable intelligent control of the load even in harsh conditions. It integrates two-channel 20mΩ MOSFETs in a compact package size with advanced protections of load current limitation, dynamic thermal swing shutdown, absolute thermal shutdown. Auto-restart or fault latch-off mode in over temperature events can be configured by an external /FaultRST pin (for Version-A only). Besides, it features chip junction temperature and supply voltage sense output to monitor the driver status more precisely. A multiplexed pin delivers these analog signals and the digital signal of fault indication for both channels in on-state and open load in off-state.
SC77220Q
The SC7720Q is a fully-protected dual channel smart high side driver qualified in automotive grade. Full diagnostics and high accuracy current sense of each channel enable intelligent control of the load even in harsh conditions. It integrates two-channel 20mΩ MOSFETs in a compact package size with advanced protections of load current limitation, dynamic thermal swing shutdown, absolute thermal shutdown. Auto-restart or fault latch-off mode in over temperature events can be configured by an external /FaultRST pin (for Version-A only). Besides, it features chip junction temperature and supply voltage sense output to monitor the driver status more precisely. A multiplexed pin delivers these analog signals and the digital signal of fault indication for both channels in on-state and open load in off-state.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value

Technical Documentation

Applications

More Solutions

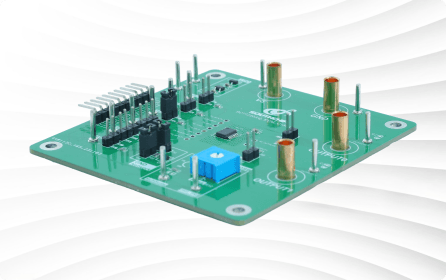

The smart high-side drivers realize the function of turning on and off the in-vehicle power supply, and identify the abnormal states of the power supply, load, and environment, then feed them back to the system, thereby enhancing the safety level of the entire system.
2024.12.26
Learn more
Parameter NameParameter Value
VIN range3.5-40V
Iout nominal5
Over Current Protection35-60A
External OCP Setting×
Channels2
Parameter NameParameter Value
Rdson @Tj=25℃18/22.5
Rdson @Tj=150℃36/45
InterfaceI/O
PackageeSSOP-16/14
Parameter NameParameter Value
VIN range3.5-40V
Iout nominal5
Over Current Protection35-60A
External OCP Setting×
Channels2
Rdson @Tj=25℃18/22.5
Rdson @Tj=150℃36/45
InterfaceI/O
PackageeSSOP-16/14
