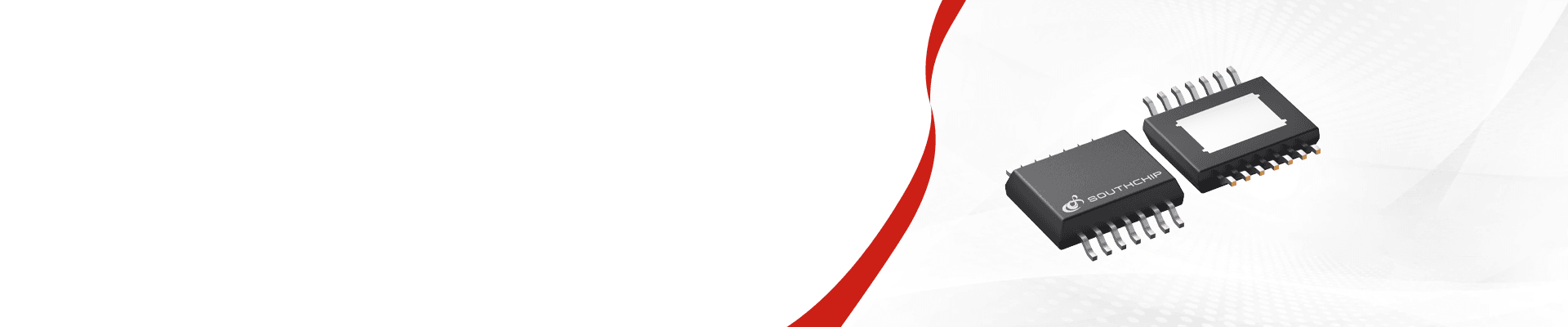

SC77108Q

Single Channel 8-mΩ Smart High Side Driver with Advanced Protections and Diagnostics

SC77108QSC77108Q

SC77108Q

Single Channel 8-mΩ Smart High Side Driver with Advanced Protections and Diagnostics

The SC77108Q is a fully-protected single channel smart high side driver qualified in automotive grade. Full diagnostics and high accuracy current sense enable intelligent control of the load even in harsh conditions. It integrates one-channel 8mΩ MOSFETs in a compact package size with advanced protections of load current limitation, dynamic thermal swing shutdown, absolute thermal shutdown. Auto-restart or fault latch-off mode in over temperature events can be configured by an external /FaultRST pin (for Version-A only). A multiplexed pin delivers these analog signals and the digital signal of fault indication in both on-state and off-state.
SC77108Q
The SC77108Q is a fully-protected single channel smart high side driver qualified in automotive grade. Full diagnostics and high accuracy current sense enable intelligent control of the load even in harsh conditions. It integrates one-channel 8mΩ MOSFETs in a compact package size with advanced protections of load current limitation, dynamic thermal swing shutdown, absolute thermal shutdown. Auto-restart or fault latch-off mode in over temperature events can be configured by an external /FaultRST pin (for Version-A only). A multiplexed pin delivers these analog signals and the digital signal of fault indication in both on-state and off-state.
Product Details

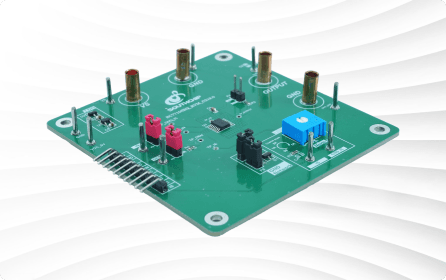

Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value

Technical Documentation

Applications

More Solutions
The smart high-side drivers realize the function of turning on and off the in-vehicle power supply, and identify the abnormal states of the power supply, load, and environment, then feed them back to the system, thereby enhancing the safety level of the entire system.
2024.12.26
Learn more
Parameter NameParameter Value
VIN range3.5-40V
Iout nominal8
Over Current Protection45-85A
External OCP Setting×
Channels1
Parameter NameParameter Value
Rdson @Tj=25℃8
Rdson @Tj=150℃17
InterfaceI/O
PackageeSSOP-16/14
Parameter NameParameter Value
VIN range3.5-40V
Iout nominal8
Over Current Protection45-85A
External OCP Setting×
Channels1
Rdson @Tj=25℃8
Rdson @Tj=150℃17
InterfaceI/O
PackageeSSOP-16/14
