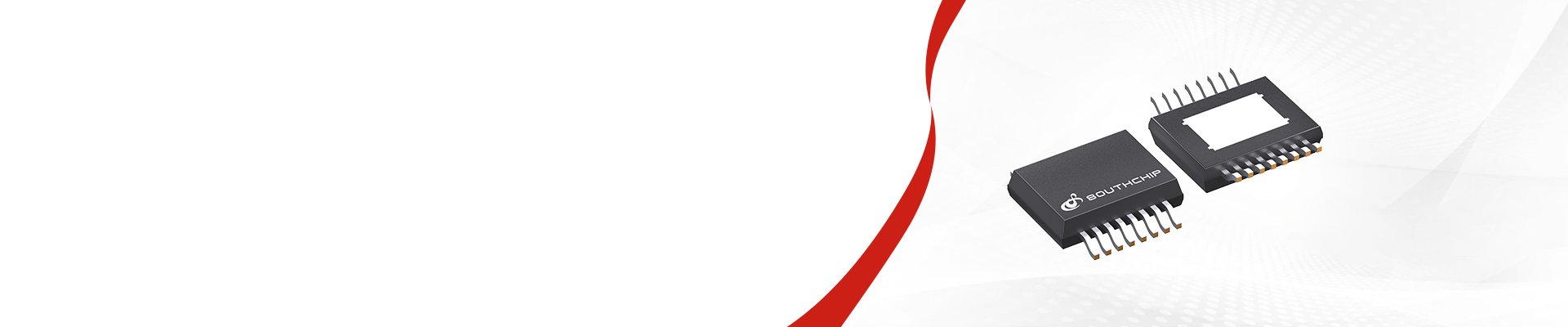

SC77108A9Q

Single Channel 8-mΩ Smart High Side Driver with Advanced Protections and Diagnostics

SC77108A9QSC77108A9Q

SC77108A9Q

The SC77108A9Q is a fully-protected single channel smart high side driver qualified in automotive grade. Full diagnostics and high accuracy current sense enable intelligent control of the load even in harsh conditions. It integrates one-channel 8mΩ MOSFETs in a compact package size with advanced protections of load current limitation, dynamic thermal swing shutdown, absolute thermal shutdown. Auto-restart or fault latch-off mode in over temperature events can be configured by an external /FaultRST pin. A multiplexed pin delivers these analog signals and the digital signal of fault indication in both on state and off-state.
SC77108A9Q
The SC77108A9Q is a fully-protected single channel smart high side driver qualified in automotive grade. Full diagnostics and high accuracy current sense enable intelligent control of the load even in harsh conditions. It integrates one-channel 8mΩ MOSFETs in a compact package size with advanced protections of load current limitation, dynamic thermal swing shutdown, absolute thermal shutdown. Auto-restart or fault latch-off mode in over temperature events can be configured by an external /FaultRST pin. A multiplexed pin delivers these analog signals and the digital signal of fault indication in both on state and off-state.
