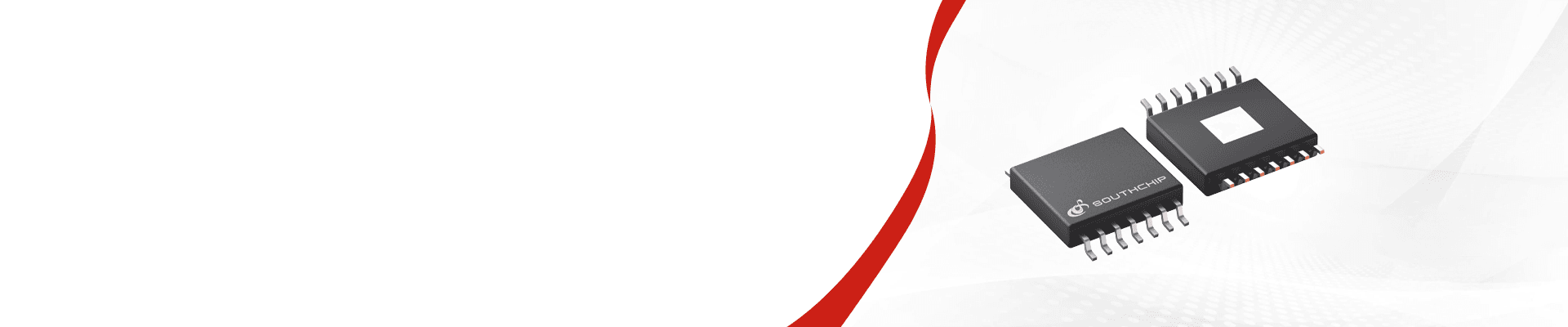

SC77101Q

Single Channel 90-mΩ Smart High Side Driver with Advanced Protections and Diagnostics

SC77101QSC77101Q

SC77101Q

Single Channel 90-mΩ Smart High Side Driver with Advanced Protections and Diagnostics

The SC77101Q device is a fully-protected single channel smart high-side switch, with an integrated 90-mΩ NMOS power FET. Full diagnostics and high-accuracy current sense features enable intelligent control of the load. External adjustable current limit improves reliability of the whole system by limiting the inrush or overload current.
SC77101Q
The SC77101Q device is a fully-protected single channel smart high-side switch, with an integrated 90-mΩ NMOS power FET. Full diagnostics and high-accuracy current sense features enable intelligent control of the load. External adjustable current limit improves reliability of the whole system by limiting the inrush or overload current.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value
EVM Model
SC77101Q EVM
Key Part Number
SC77101Q
Maximum working voltage
40V
channel number
1
on-resistance
100mΩ
Interface Type
I/O

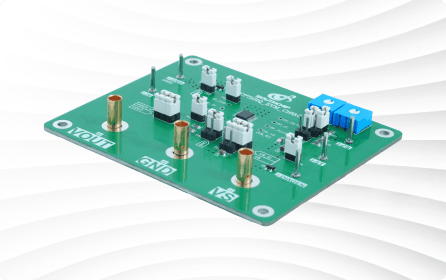

SC77101Q EVM

Technical Documentation

Applications

More Solutions
The smart high-side drivers realize the function of turning on and off the in-vehicle power supply, and identify the abnormal states of the power supply, load, and environment, then feed them back to the system, thereby enhancing the safety level of the entire system.
2024.12.26
Learn more
Parameter NameParameter Value
VIN range3.5-40V
Iout nominal4
Over Current Protection6-12A
External OCP Setting√
Channels1
Parameter NameParameter Value
Rdson @Tj=25℃90
Rdson @Tj=150℃166
InterfaceI/O
PackageeTSSOP-14
Parameter NameParameter Value
VIN range3.5-40V
Iout nominal4
Over Current Protection6-12A
External OCP Setting√
Channels1
Rdson @Tj=25℃90
Rdson @Tj=150℃166
InterfaceI/O
PackageeTSSOP-14
