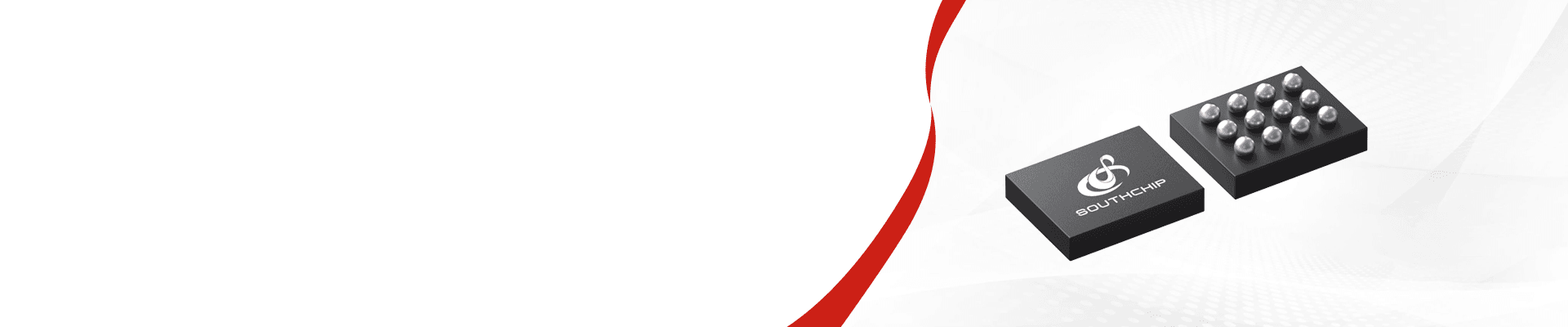

SC7289

500mA Linear Charger for Single-Cell Li-ion Battery with Power Path Management and UART Mode for TWS Earbuds

SC7289SC7289

SC7289

500mA Linear Charger for Single-Cell Li-ion Battery with Power Path Management and UART Mode for TWS Earbuds

The SC7289 is a highly integrated, single-cell, Li-ion/Li-polymer battery charger with system power path management and I2C interface for space-limited portable applications. The SC7289 takes input power from either an AC adapter or a USB port to supply the system load and charge the battery simultaneously. The SC7289 provides the charge management functions including trickle charge, constant current charge, constant voltage charge, charge termination and auto-recharge.
SC7289
The SC7289 is a highly integrated, single-cell, Li-ion/Li-polymer battery charger with system power path management and I2C interface for space-limited portable applications. The SC7289 takes input power from either an AC adapter or a USB port to supply the system load and charge the battery simultaneously. The SC7289 provides the charge management functions including trickle charge, constant current charge, constant voltage charge, charge termination and auto-recharge.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
VIN range4.5-5.5V
Abs. VIN (max)21V
Abs. VBAT (max)6V
IQ_BAT3μA
Battery Cell #1s
MOSint.
Charge Current (max)500mA
Parameter NameParameter Value
Charge Voltage3.6V-4.6V, 10mV Step
Constant Charge Threshold2.8V/3V
Program Termination CurrentYes
NTCYes
VIN DPM√
PackageWLCSP-12
Parameter NameParameter Value
VIN range4.5-5.5V
Abs. VIN (max)21V
Abs. VBAT (max)6V
IQ_BAT3μA
Battery Cell #1s
MOSint.
Charge Current (max)500mA
Charge Voltage3.6V-4.6V, 10mV Step
Constant Charge Threshold2.8V/3V
Program Termination CurrentYes
NTCYes
VIN DPM√
PackageWLCSP-12
