SC71701Q

Single-Channel Automotive Antenna LDO with Current Sense

SC71701QSC71701Q

SC71701Q

Single-Channel Automotive Antenna LDO with Current Sense

The SC71701Q is a single-channel low-dropout regulator (LDO) family, designed to operate for a wide input voltage range from 4.5-V to 36-V (40-V load dump capability). The LDO family is suitable to supply automotive active antenna, camera modules and microphone applications through coax cables with 400-mA current capability per channel. The SC71701Q is designed to indicate full diagnostics through current sense and error pins to MCU. Therefore, current sense is multiplexed to report a proportional analog output to the sensed load current and provide fault indications without external calibrations. The current limit of individual channel is adjustable by a resistor on ILIM pin. Implementing Back-to-Back (B2B) FET structure, SC71701Q is able to protect against reverse current and reverse battery polarity failures without extra input diode. The LDO also offers thermal shutdown (TSD) and output short-to-battery (STB) protection. An internal inductive clamp diode is integrated for each channel to protect the device during shutdown with a long inductive cable on output. The SC71701Q is available in HTSSOP-16 package.
SC71701Q
The SC71701Q is a single-channel low-dropout regulator (LDO) family, designed to operate for a wide input voltage range from 4.5-V to 36-V (40-V load dump capability). The LDO family is suitable to supply automotive active antenna, camera modules and microphone applications through coax cables with 400-mA current capability per channel. The SC71701Q is designed to indicate full diagnostics through current sense and error pins to MCU. Therefore, current sense is multiplexed to report a proportional analog output to the sensed load current and provide fault indications without external calibrations. The current limit of individual channel is adjustable by a resistor on ILIM pin. Implementing Back-to-Back (B2B) FET structure, SC71701Q is able to protect against reverse current and reverse battery polarity failures without extra input diode. The LDO also offers thermal shutdown (TSD) and output short-to-battery (STB) protection. An internal inductive clamp diode is integrated for each channel to protect the device during shutdown with a long inductive cable on output. The SC71701Q is available in HTSSOP-16 package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value
EVM 型号
SC71701Q EVM
关键器件
SC71701Q, SC71702Q, SC71701AQ, SC71702AQ
最大工作电压
40V
通道数
2

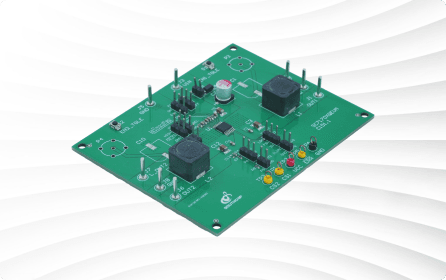

SC71701Q EVM

Technical Documentation

Parameter NameParameter Value
VIN range4.5 - 36V
Abs. VIN (max)40V
VOUT range1.5-22V
IOUT range400mA
Channel1
Parameter NameParameter Value
Fault LogicLatch off
Current LimitAdjustable
FeaturesReverse battery polarity protection, Output short-to-battery protection, Output short-circuit protection

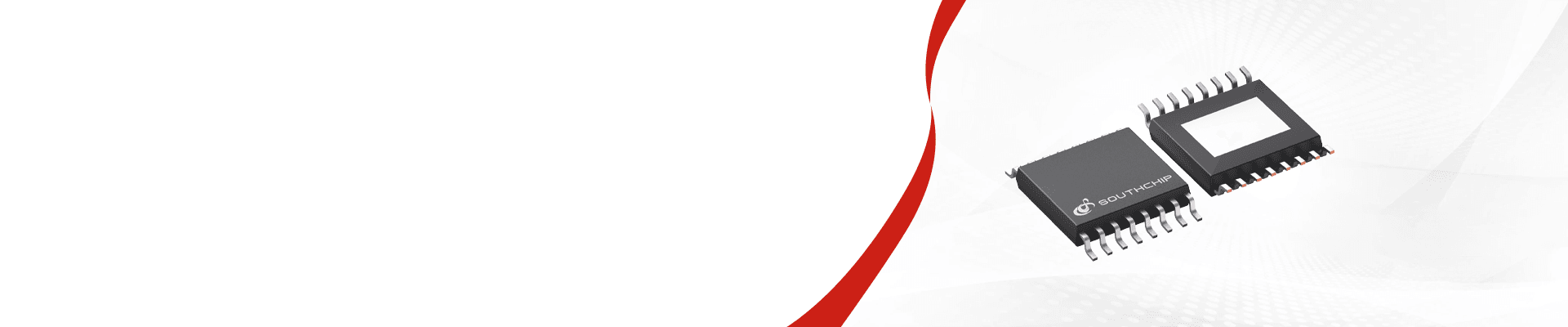

PackageHTSSOP-16 5x6.4
Parameter NameParameter Value
VIN range4.5 - 36V
Abs. VIN (max)40V
VOUT range1.5-22V
IOUT range400mA
Channel1
Fault LogicLatch off
Current LimitAdjustable
FeaturesReverse battery polarity protection, Output short-to-battery protection, Output short-circuit protection
PackageHTSSOP-16 5x6.4
