SC70561

500mA Fully Integrated Linear Charger for 1Cell Li-ion Battery with VINDPM

SC70561SC70561

SC70561

500mA Fully Integrated Linear Charger for 1Cell Li-ion Battery with VINDPM

The SC70561x is a highly integrated linear charger for 1-cell Li-ion battery applications. It supports up to 500mA charging current and provides battery charge management functions including trickle charge, constant current charge, constant voltage charge, charge termination and charging status indication.
SC70561
The SC70561x is a highly integrated linear charger for 1-cell Li-ion battery applications. It supports up to 500mA charging current and provides battery charge management functions including trickle charge, constant current charge, constant voltage charge, charge termination and charging status indication.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
VIN range4.5-6V
Abs. VIN (max)26.5V
Abs. VBAT (max)±8V
IQ_BAT250nA
Battery Cell #1s
MOSint.
Parameter NameParameter Value
Charge Current (max)500mA
Charge Voltage4.2V/4.35V
Constant Charge Threshold2.5V/2.9V
Program Termination Current√
VIN DPM√

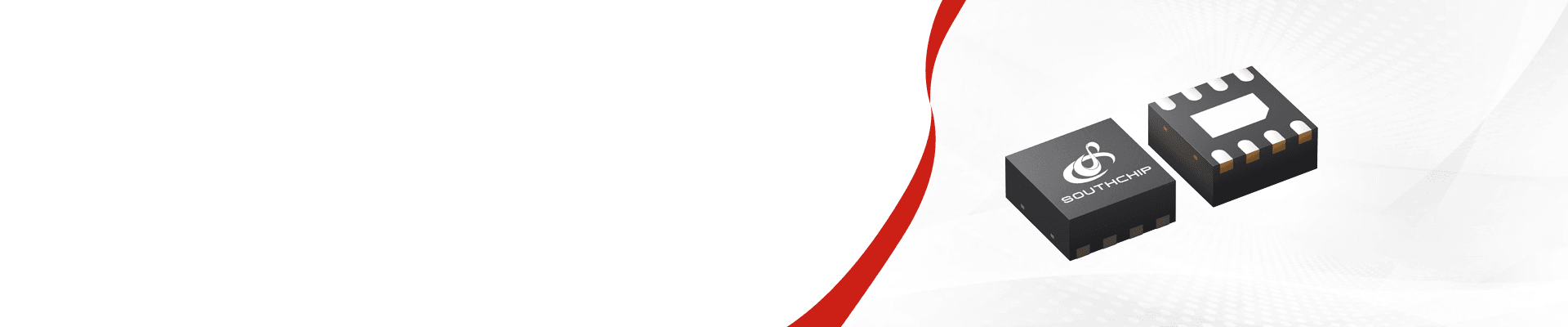

PackageDFN 2x2
Parameter NameParameter Value
VIN range4.5-6V
Abs. VIN (max)26.5V
Abs. VBAT (max)±8V
IQ_BAT250nA
Battery Cell #1s
MOSint.
Charge Current (max)500mA
Charge Voltage4.2V/4.35V
Constant Charge Threshold2.5V/2.9V
Program Termination Current√
VIN DPM√
PackageDFN 2x2
