SC7002

12 mΩ Power Switch with Curernt Limit and Charging Port Controller

SC7002SC7002

SC7002

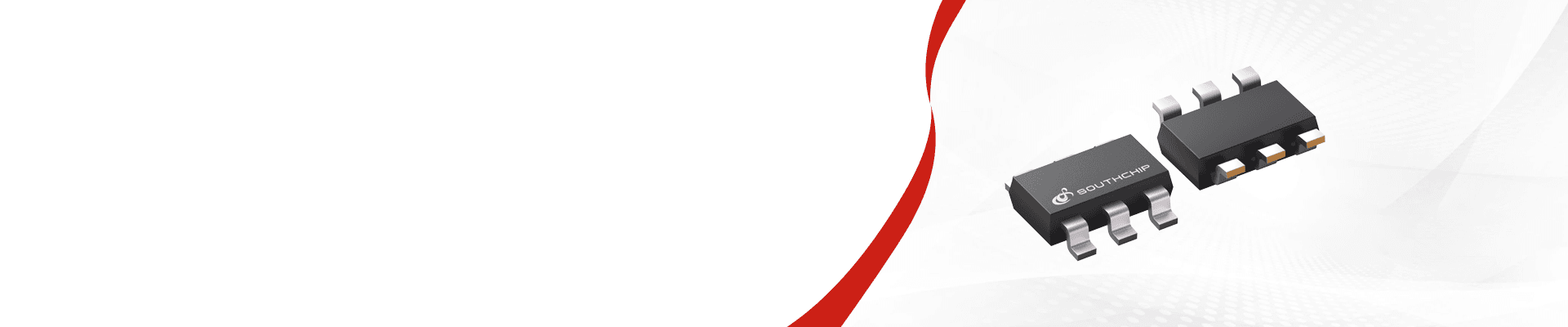

The SC7002 is a power switch which integrates an ultra-low Rds(on) (12mΩ) N-channel MOSFET. It is designed for USB port applications or other applications which require high current switch. It provides current limit function, and the current limit can be programmable through an external resistor. The SC7002 also integrates USB charging port controller function. It can support traditional type A USB port with DP and DM signals. It monitors the DP/DM data line voltage, and automatically supports the DCP schemes for Battery Charging specification (BC1.2), the divider Mode and 1.2V/1.2V Mode. The SC7002 also supports various protections, including over voltage protection, under voltage protection, short circuit protection, and thermal shutdown protection. The SC7002 requires a minimum number of external components to complete USB switch and charging port solution. It is available in TSOT23-6 package.
SC7002
The SC7002 is a power switch which integrates an ultra-low Rds(on) (12mΩ) N-channel MOSFET. It is designed for USB port applications or other applications which require high current switch. It provides current limit function, and the current limit can be programmable through an external resistor. The SC7002 also integrates USB charging port controller function. It can support traditional type A USB port with DP and DM signals. It monitors the DP/DM data line voltage, and automatically supports the DCP schemes for Battery Charging specification (BC1.2), the divider Mode and 1.2V/1.2V Mode. The SC7002 also supports various protections, including over voltage protection, under voltage protection, short circuit protection, and thermal shutdown protection. The SC7002 requires a minimum number of external components to complete USB switch and charging port solution. It is available in TSOT23-6 package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
Number of Outputs1
VIN range4-5.6V
Abs. VIN (max)7V
Imax6A
Rdson12 mΩ
Current Limit0.5-5A prog.
Parameter NameParameter Value
Iq typ.92 µA
DPDM Interface√
Input UVP and OVP√
Short Circuit Protection√
Thermal Protection√
PackageTSOT23-6
Parameter NameParameter Value
Number of Outputs1
VIN range4-5.6V
Abs. VIN (max)7V
Imax6A
Rdson12 mΩ
Current Limit0.5-5A prog.
Iq typ.92 µA
DPDM Interface√
Input UVP and OVP√
Short Circuit Protection√
Thermal Protection√
PackageTSOT23-6
