SC6301

High-Efficiency Dual Buck Converters with Load Switch for LPDDR5/5X and LPDDR4X Power Solution

SC6301SC6301

SC6301

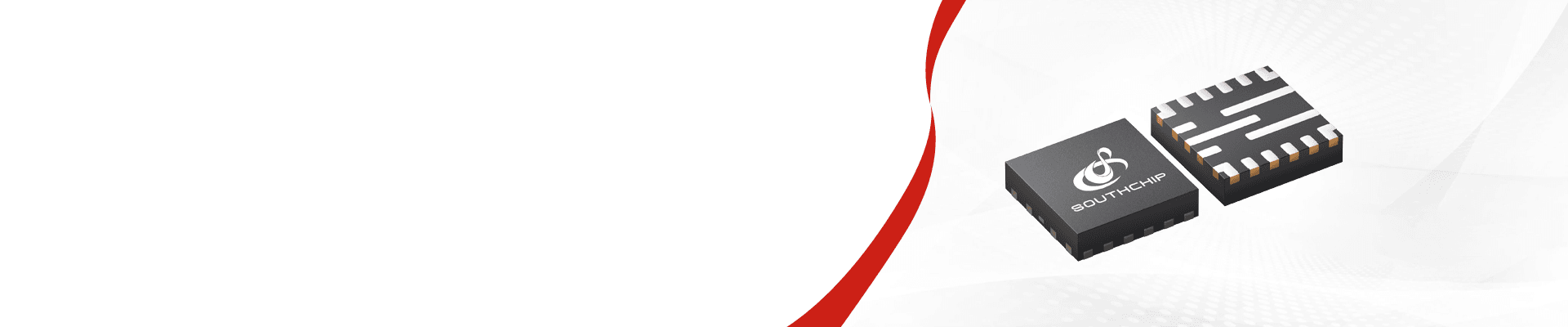

The SC6301 is a total power solution PMIC for LPDDR5, LPDDR5X, and LPDDR4X memory. It can meet the requirement of the output voltage and power sequence from the JEDEC standard and support flexible power state operation S3/S5 with EN and VDDQEN control. The device integrates two synchronous, high-frequency buck converters (VDD2 and VDDQ). The converters adopt a constant on-time control mode with internal ramp compensation which features excellent load transient performance and supports very low ESR output capacitors such as ceramic capacitors. It also provides high efficiency with internal low Rdson power MOSFETs. The VDD2 can support up to 14A peak output current, and the VDDQ can support up to 3A output current. The device also integrates a 18mΩ load switch for VDD1. The VDD1 supports up to 3A peak output current with 1.8V input voltage. The SC6301 integrates rich protections to extend the operating range without damaging itself or the system load. The protection features include UVLO, OVP, OCP, UVP, and thermal shutdown protection. The SC6301 adopts a 3x3mm FCQFN3X3 package.
SC6301
The SC6301 is a total power solution PMIC for LPDDR5, LPDDR5X, and LPDDR4X memory. It can meet the requirement of the output voltage and power sequence from the JEDEC standard and support flexible power state operation S3/S5 with EN and VDDQEN control. The device integrates two synchronous, high-frequency buck converters (VDD2 and VDDQ). The converters adopt a constant on-time control mode with internal ramp compensation which features excellent load transient performance and supports very low ESR output capacitors such as ceramic capacitors. It also provides high efficiency with internal low Rdson power MOSFETs. The VDD2 can support up to 14A peak output current, and the VDDQ can support up to 3A output current. The device also integrates a 18mΩ load switch for VDD1. The VDD1 supports up to 3A peak output current with 1.8V input voltage. The SC6301 integrates rich protections to extend the operating range without damaging itself or the system load. The protection features include UVLO, OVP, OCP, UVP, and thermal shutdown protection. The SC6301 adopts a 3x3mm FCQFN3X3 package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value
EVM Model
SC6301 EVM
Key Part Number
SC6301
VIN Voltage
MAX 24V
VDD2 Current
10A+

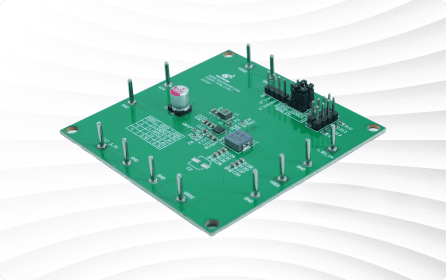

SC6301 EVM
Parameter NameParameter Value
VIN range3.1-24V
Abs. VIN (max)28V
VDD1 IOUT(Peak)3A
VDD2 IOUT(Peak)14A
VDDQ IOUT(Peak)3A
VDD2 range1.065V/1.1V/0.9V
Parameter NameParameter Value
VDDQ range0.51V/0.6V/0.3V
TopologyVDD1: Load Switch VDD2/VDDQ: Buck
FswVDD2: 650kHz VDDQ: 600kHz
OCPVDD1: 4.5A VDD2: 15.5A Valley VDDQ: 3.5A Valley
PackageFCQFN 3x3
Parameter NameParameter Value
VIN range3.1-24V
Abs. VIN (max)28V
VDD1 IOUT(Peak)3A
VDD2 IOUT(Peak)14A
VDDQ IOUT(Peak)3A
VDD2 range1.065V/1.1V/0.9V
VDDQ range0.51V/0.6V/0.3V
TopologyVDD1: Load Switch VDD2/VDDQ: Buck
FswVDD2: 650kHz VDDQ: 600kHz
OCPVDD1: 4.5A VDD2: 15.5A Valley VDDQ: 3.5A Valley
PackageFCQFN 3x3
