SC6201Q

High-Performance PMIC with Buck Converters and LDO for Automotive Camera Module

SC6201QSC6201Q

SC6201Q

High-Performance PMIC with Buck Converters and LDO for Automotive Camera Module

The SC6201Q is a high-performance Power Management IC (PMIC) for automotive camera modules. It includes a high-voltage buck converter for a primary regulator, dual low-voltage buck converters and a LDO for secondary regulators. The device is powered by a primary high-voltage buck converter with an input voltage range from 4V to 19V through a Power Over Coax (POC) connection. The dual low-voltage buck converters and the LDO are powered by the output of the high-voltage buck converter and the input voltage ranges from 2.7V to 5.5V. The high-voltage buck converter supports adjustable output voltage and 2A output current. The low-voltage buck converters adopt fixed output voltage and support 1.5A and 0.75A output current, respectively. All the switching converters operate in a forced fixed-frequency of 2.2MHz PWM mode with spread spectrum and phase shift. The LDO features a high Power Supply Rejection Ratio (PSRR) and provides adjustable output voltage through an external resistor. The CMOS Image Sensors (CIS) not only require different drive voltage settings and sequence control depending on the manufacturer but are typically configured utilizing many external components. The SC6201Q adopts a small 3mm x 3mm QFN package and configure pins for setting CIS sequence and voltage control to reduce external components, contributing to the design of smaller automotive camera modules. The device integrates full protections, including input under-voltage and over-voltage protection, output under-voltage and over-voltage protection, cycle-by-cycle current limitation, and thermal shutdown protection.
SC6201Q
The SC6201Q is a high-performance Power Management IC (PMIC) for automotive camera modules. It includes a high-voltage buck converter for a primary regulator, dual low-voltage buck converters and a LDO for secondary regulators. The device is powered by a primary high-voltage buck converter with an input voltage range from 4V to 19V through a Power Over Coax (POC) connection. The dual low-voltage buck converters and the LDO are powered by the output of the high-voltage buck converter and the input voltage ranges from 2.7V to 5.5V. The high-voltage buck converter supports adjustable output voltage and 2A output current. The low-voltage buck converters adopt fixed output voltage and support 1.5A and 0.75A output current, respectively. All the switching converters operate in a forced fixed-frequency of 2.2MHz PWM mode with spread spectrum and phase shift. The LDO features a high Power Supply Rejection Ratio (PSRR) and provides adjustable output voltage through an external resistor. The CMOS Image Sensors (CIS) not only require different drive voltage settings and sequence control depending on the manufacturer but are typically configured utilizing many external components. The SC6201Q adopts a small 3mm x 3mm QFN package and configure pins for setting CIS sequence and voltage control to reduce external components, contributing to the design of smaller automotive camera modules. The device integrates full protections, including input under-voltage and over-voltage protection, output under-voltage and over-voltage protection, cycle-by-cycle current limitation, and thermal shutdown protection.
Product Details

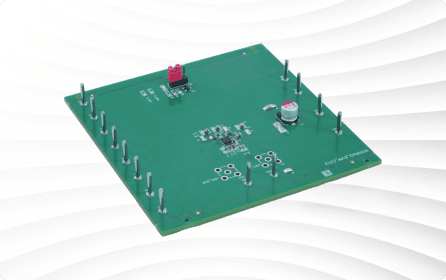

Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value

Technical Documentation

Applications

More Solutions
We offer a one-stop solution for ADAS ECUs and camera/radar modules.
2024.12.26
Learn more
Parameter NameParameter Value
Regulated Output4
VIN range4-19V
Abs. VIN (max)25V
HV1 OutputAdjustable
LDO PSRR(@100kHz)60dB
Parameter NameParameter Value
LV Buck Iout(max)1.5A/0.75A
IndicatorPG
FeaturesSpread spectrum, Wettable Flank, 2.2MHz

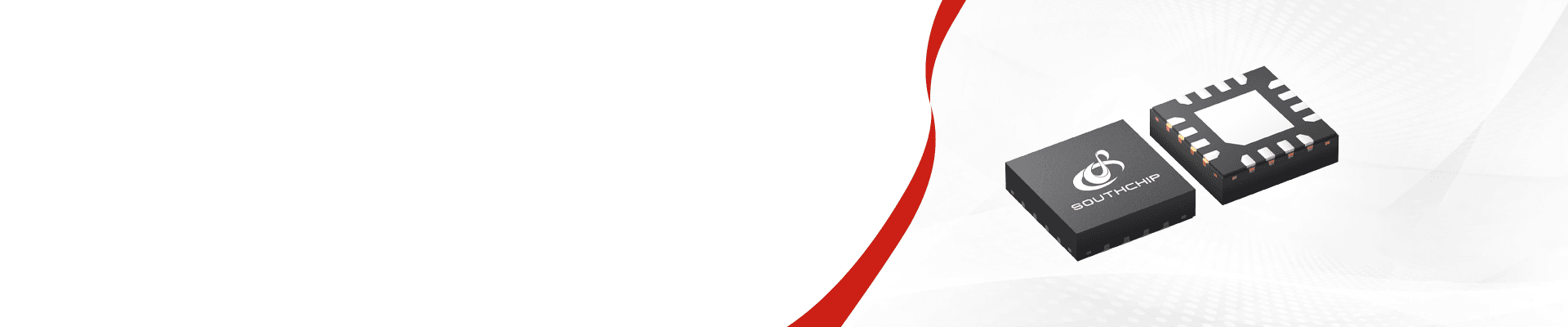

PackageQFN-16 3x3
Functional Safety LevelN/A
Parameter NameParameter Value
Regulated Output4
VIN range4-19V
Abs. VIN (max)25V
HV1 OutputAdjustable
LDO PSRR(@100kHz)60dB
LV Buck Iout(max)1.5A/0.75A
IndicatorPG
FeaturesSpread spectrum, Wettable Flank, 2.2MHz
PackageQFN-16 3x3
Functional Safety LevelN/A
