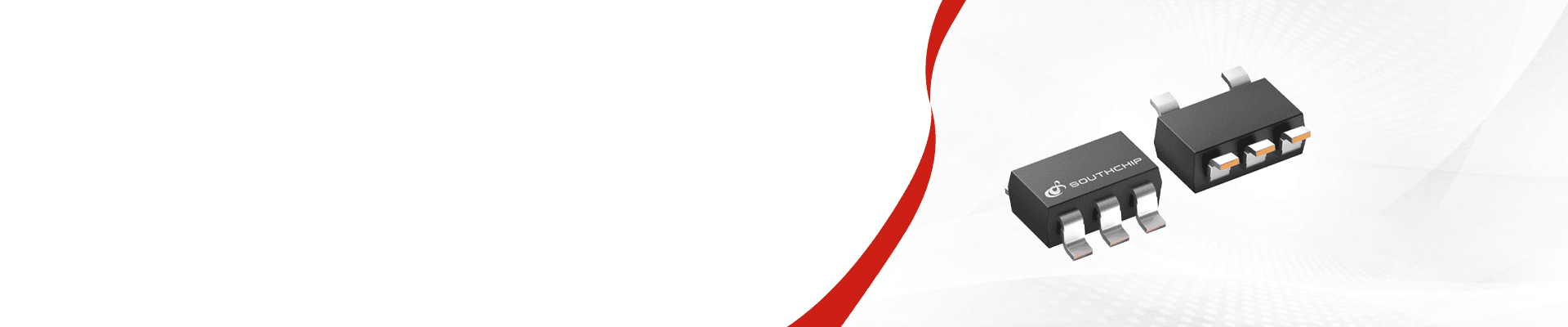

SC5516A

High-Accuracy Protector with Integrated MOSFET for Single Cell Li-ion/Polymer Battery

SC5516ASC5516A

SC5516A

The SC5516A is a highly integrated IC for single-cell Li-ion battery protection. It controls integrated MOSFET and provides battery protection functions including battery over voltage protection and battery under voltage protection, charge/discharge over current protection and load short circuit protection etc. The SC5516A only requires little external components composites of one capacitor and one resistor, which can reduce space and cost effectively, especially for limited space battery pack application. The SC5516A especially integrates compensation for internal MOSFET Rdson variations under different temperature and battery voltage, which effectively ensures high-accuracy voltage/current detection and delay circuit to avoid battery overcharge/over discharge. Therefore, battery is applied under safe region and lifetime is effectively prolonged. The SC5516A consumes very low standby current for cell long-time storing. The integrated low-Rdson MOSFET ensures that battery delivers the maximum power. The SC5516A is available in SOT23-5 package.
SC5516A
The SC5516A is a highly integrated IC for single-cell Li-ion battery protection. It controls integrated MOSFET and provides battery protection functions including battery over voltage protection and battery under voltage protection, charge/discharge over current protection and load short circuit protection etc. The SC5516A only requires little external components composites of one capacitor and one resistor, which can reduce space and cost effectively, especially for limited space battery pack application. The SC5516A especially integrates compensation for internal MOSFET Rdson variations under different temperature and battery voltage, which effectively ensures high-accuracy voltage/current detection and delay circuit to avoid battery overcharge/over discharge. Therefore, battery is applied under safe region and lifetime is effectively prolonged. The SC5516A consumes very low standby current for cell long-time storing. The integrated low-Rdson MOSFET ensures that battery delivers the maximum power. The SC5516A is available in SOT23-5 package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
VOCV(V)4.3
VOCV hys. (mV)200
VODV (V)2.4
VODV hys. (mV)600
tDOC1 (ms)16
tCOC (ms)16
tOCV (ms)256
Parameter NameParameter Value
tODV (ms)80
Support cell1
Rsson(mΩ)19
IODC(A)10
IOCC(A)2.4
0V charging√
PackageSOT23-5
Parameter NameParameter Value
VOCV(V)4.3
VOCV hys. (mV)200
VODV (V)2.4
VODV hys. (mV)600
tDOC1 (ms)16
tCOC (ms)16
tOCV (ms)256
tODV (ms)80
Support cell1
Rsson(mΩ)19
IODC(A)10
IOCC(A)2.4
0V charging√
PackageSOT23-5
