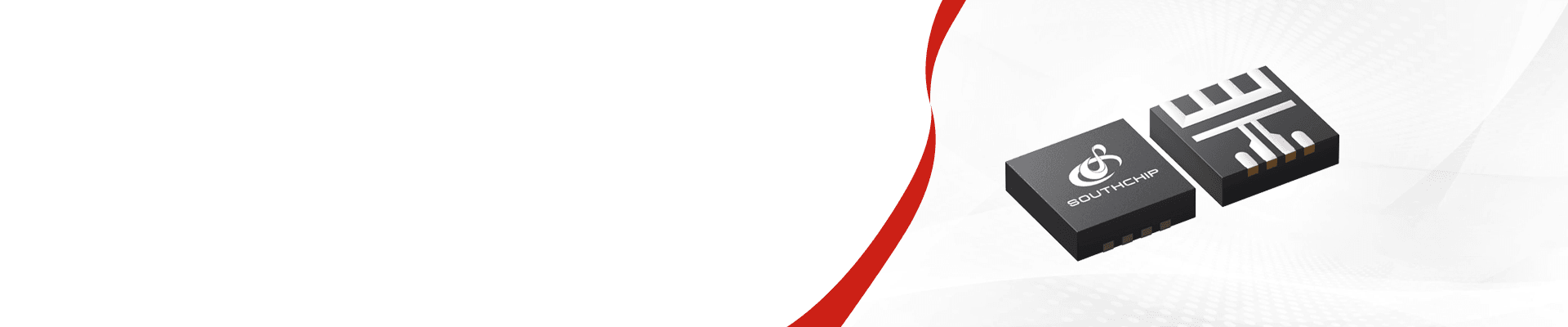

SC5510F

High-Accuracy Protector with Integrated MOSFET for Single Cell Li-ion/Polymer Battery

SC5510FSC5510F

SC5510F

The SC5510F is a highly integrated IC for single-cell Li-ion battery protection. It controls integrated MOSFET and provides battery protection functions including battery over voltage protection and battery under voltage protection, charge/discharge over current protection and load short circuit protection etc. The SC5510F only requires little external components composites of one capacitor and one resistor, which can reduce space and cost effectively, especially for limited space battery pack application. The SC5510F especially integrates compensation for internal MOSFET Rdson variations under different temperature and battery voltage, which effectively ensures high-accuracy voltage/current detection and delay circuit to avoid battery over charge/over discharge. Therefore, battery is applied under safe region and lifetime is effectively prolonged. The SC5510F consumes very low standby current for cell long-time storing. The integrated low-Rdson MOSFET ensures that battery delivers the maximum power. The SC5510F is available in 8 pin 2x2 DFN (FC) package.
SC5510F
The SC5510F is a highly integrated IC for single-cell Li-ion battery protection. It controls integrated MOSFET and provides battery protection functions including battery over voltage protection and battery under voltage protection, charge/discharge over current protection and load short circuit protection etc. The SC5510F only requires little external components composites of one capacitor and one resistor, which can reduce space and cost effectively, especially for limited space battery pack application. The SC5510F especially integrates compensation for internal MOSFET Rdson variations under different temperature and battery voltage, which effectively ensures high-accuracy voltage/current detection and delay circuit to avoid battery over charge/over discharge. Therefore, battery is applied under safe region and lifetime is effectively prolonged. The SC5510F consumes very low standby current for cell long-time storing. The integrated low-Rdson MOSFET ensures that battery delivers the maximum power. The SC5510F is available in 8 pin 2x2 DFN (FC) package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
VOCV(V)4.3
VOCV hys. (mV)200
VODV (V)2.5
VODV hys. (mV)400
tDOC1 (ms)8
tCOC (ms)8
tOCV (ms)128
Parameter NameParameter Value
tODV (ms)40
Support cell1
Rsson(mΩ)9
IODC(A)11
IOCC(A)10
0V charging√
PackageDFN 2x2-8L
Parameter NameParameter Value
VOCV(V)4.3
VOCV hys. (mV)200
VODV (V)2.5
VODV hys. (mV)400
tDOC1 (ms)8
tCOC (ms)8
tOCV (ms)128
tODV (ms)40
Support cell1
Rsson(mΩ)9
IODC(A)11
IOCC(A)10
0V charging√
PackageDFN 2x2-8L
