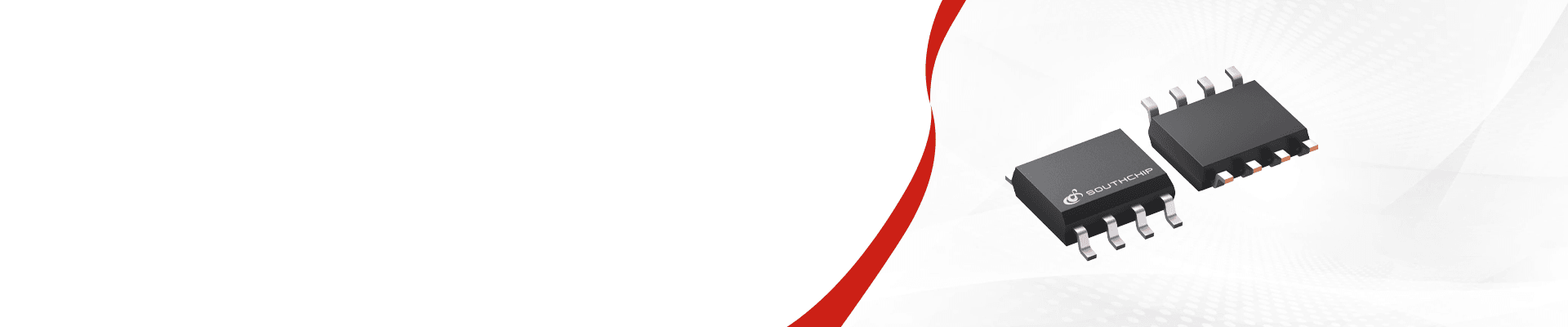

SC3512

Fast Turn-Off Synchronous Rectifier

SC3512SC3512

SC3512

SC3512 is a smart secondary-side synchronous rectifier. It integrates a 60V power MOSFET. SC3512 can replace Schottky diode so the system can achieve higher efficiency. The SR MOSFET is turned on when the VVD falls below turn-on threshold, and turned off when the VVD exceeds turn-off threshold. The SR conduction voltage drop is continuously monitored to minimize the conduction loss. The extremely fast turn-off comparator and driving circuitry ensures the safety of the system, even in current continuous mode (CCM) condition. This chip supports both high side rectification and low side rectification.
SC3512
SC3512 is a smart secondary-side synchronous rectifier. It integrates a 60V power MOSFET. SC3512 can replace Schottky diode so the system can achieve higher efficiency. The SR MOSFET is turned on when the VVD falls below turn-on threshold, and turned off when the VVD exceeds turn-off threshold. The SR conduction voltage drop is continuously monitored to minimize the conduction loss. The extremely fast turn-off comparator and driving circuitry ensures the safety of the system, even in current continuous mode (CCM) condition. This chip supports both high side rectification and low side rectification.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value
EVM Model
SC3512SC2150P EVM
Key Part Number
SC3512
Power
20W
Supports a wide range of output voltages. VDD without external LDO power supply
Vout=3.3V~20V

Technical Documentation

Parameter NameParameter Value
VDS Rating60V
Maximum FrequencyUp to 400KHz
Quiescent Current110uA
Minimum Turn-on Time0.70~0.90~1.20(uS)
Turn-on Delay40nS
Turn-off Delay25nS
Parameter NameParameter Value
Turn-off Propagation10nS
RDS_ON12mꭥ
Application20W/33W
PackageSOP8
ModeCCM/QR/DCM
Parameter NameParameter Value
VDS Rating60V
Maximum FrequencyUp to 400KHz
Quiescent Current110uA
Minimum Turn-on Time0.70~0.90~1.20(uS)
Turn-on Delay40nS
Turn-off Delay25nS
Turn-off Propagation10nS
RDS_ON12mꭥ
Application20W/33W
PackageSOP8
ModeCCM/QR/DCM
