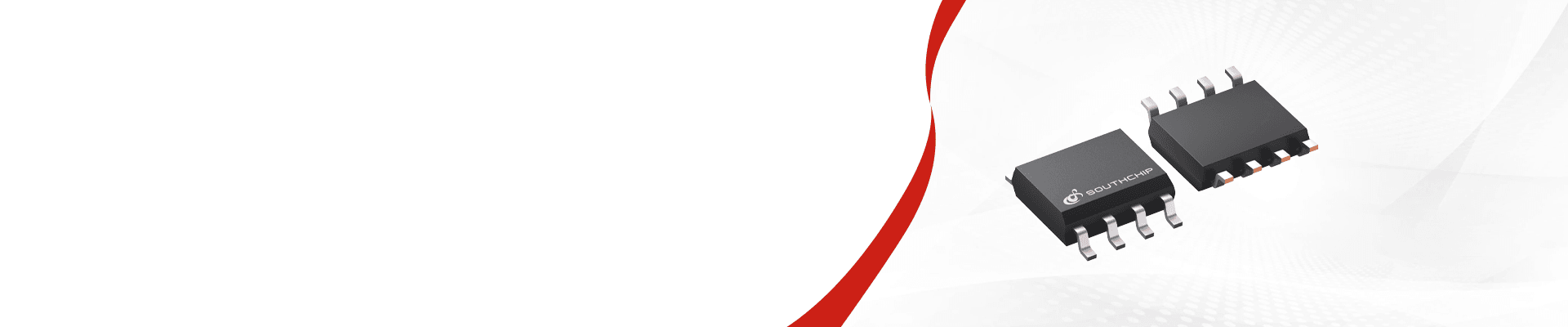

SC3511A

Fast Turn-Off Synchronous Rectifier

SC3511ASC3511A

SC3511A

SC3511 is a smart secondary-side synchronous rectifier. It integrates a 100V power MOSFET. SC3511 can replace Schottky diode so the system can achieve higher efficiency. The SR MOSFET is turned on when the VVD falls below turn-on threshold, and turned off when the VVD exceeds turn-off threshold. The SR conduction voltage drop is continuously monitored to minimize the conduction loss. The extremely fast turn-off comparator and driving circuitry ensures the safety of the system, even in current continuous mode (CCM) condition. This chip supports both high side rectification and low side rectification.
SC3511A
SC3511 is a smart secondary-side synchronous rectifier. It integrates a 100V power MOSFET. SC3511 can replace Schottky diode so the system can achieve higher efficiency. The SR MOSFET is turned on when the VVD falls below turn-on threshold, and turned off when the VVD exceeds turn-off threshold. The SR conduction voltage drop is continuously monitored to minimize the conduction loss. The extremely fast turn-off comparator and driving circuitry ensures the safety of the system, even in current continuous mode (CCM) condition. This chip supports both high side rectification and low side rectification.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
VDS Rating100V
Maximum FrequencyUp to 1MHz
Quiescent Current110uA
Minimum Turn-on Time0.30~0.40~0.50(uS)
Turn-on Delay20nS
Turn-off Delay20nS
Parameter NameParameter Value
Turn-off Propagation10nS
RDS_ON10mꭥ
Application33W
PackageSOP8
ModeCCM/QR/DCM
