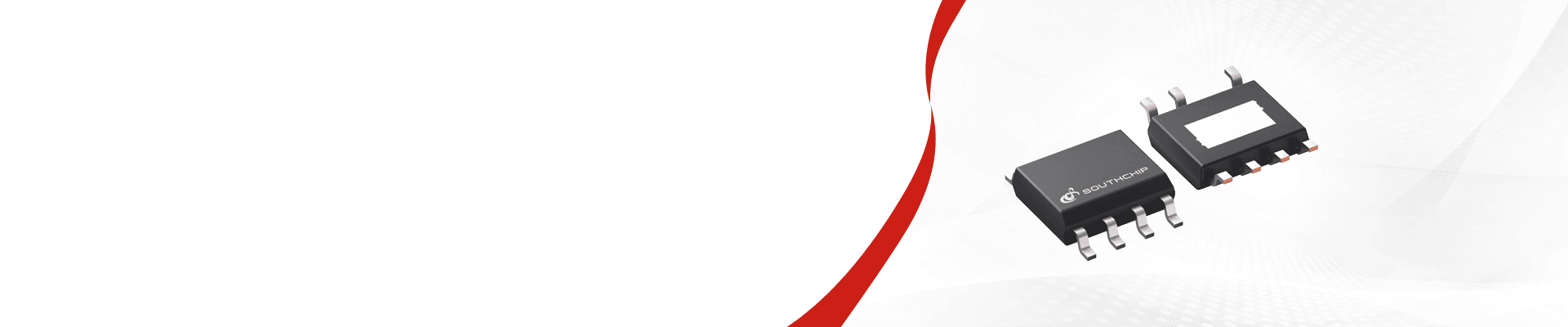

SC3054H

High Frequency Quasi-Resonant Flyback Converter With GaN Integrated

SC3054HSC3054H

SC3054H

High Frequency Quasi-Resonant Flyback Converter With GaN Integrated

SC3054H is a high frequency, quasi-resonant flyback PWM converter with 650V GaN integrated (QR/DCM), which can achieve high efficiency and reliability. SC3054H provides an adaptive switching frequency fold_x0002_back to achieve higher efficiency in the whole loading range. It operates in QR and DCM with valley switching for high efficiency. And at no load, the IC will operate in burst mode to reduce power consumption. SC3054H provides functions of low start-up current, low standby power consumption. The burst mode with extremely low operation current (350uA) can significantly reduce standby power consumption to meet the efficiency regulations. The converter integrates a segment power supply circuit for VDD power supply, which is especially suitable for applications with wide output voltage range. SC3054H offers comprehensive protections to prevent the circuit from damage under abnormal conditions. Furthermore, the features of frequency jittering and smart driving function can minimize the noise and improve EMI performance.
SC3054H
SC3054H is a high frequency, quasi-resonant flyback PWM converter with 650V GaN integrated (QR/DCM), which can achieve high efficiency and reliability. SC3054H provides an adaptive switching frequency fold_x0002_back to achieve higher efficiency in the whole loading range. It operates in QR and DCM with valley switching for high efficiency. And at no load, the IC will operate in burst mode to reduce power consumption. SC3054H provides functions of low start-up current, low standby power consumption. The burst mode with extremely low operation current (350uA) can significantly reduce standby power consumption to meet the efficiency regulations. The converter integrates a segment power supply circuit for VDD power supply, which is especially suitable for applications with wide output voltage range. SC3054H offers comprehensive protections to prevent the circuit from damage under abnormal conditions. Furthermore, the features of frequency jittering and smart driving function can minimize the noise and improve EMI performance.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value

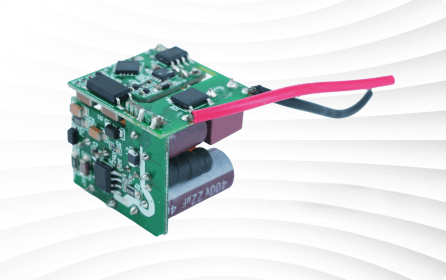

EVM Model
SC3054HSC2150P EVM
Key Part Number
SC3054H
Power
20W
Supports a wide range of output voltages. VDD without external LDO power supply
Vout=3.3V~20V
SC3054HSC2150P EVM

Technical Documentation

Parameter NameParameter Value
Fsw_Max175KHz
Control ModeQR/DCM
HV_Pin Bin/Bout(Vdc)ZCD
X-Cap Dis-charge/
Ext-OTP/
ZCD Pin OVP(V)4.45
Parameter NameParameter Value
FB OLPA
VDD OVP (V)40
DRVInt-GaN
Rdson(Ω)1
Recommended Application18W~22.5W
PackageSOP7
Parameter NameParameter Value
Fsw_Max175KHz
Control ModeQR/DCM
HV_Pin Bin/Bout(Vdc)ZCD
X-Cap Dis-charge/
Ext-OTP/
ZCD Pin OVP(V)4.45
FB OLPA
VDD OVP (V)40
DRVInt-GaN
Rdson(Ω)1
Recommended Application18W~22.5W
PackageSOP7
