SC25042Q

high-speed CAN/CAN FD transceiver

SC25042QSC25042Q

SC25042Q

high-speed CAN/CAN FD transceiver

The SC25042Q high-speed CAN/CAN FD transceiver provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed CAN/CAN FD applications in the automotive industry, providing the differential transmit and receive capability to (a microcontroller with) a CAN protocol controller.
SC25042Q
The SC25042Q high-speed CAN/CAN FD transceiver provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed CAN/CAN FD applications in the automotive industry, providing the differential transmit and receive capability to (a microcontroller with) a CAN protocol controller.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
VCC Range4.5-5.5V
Bus Fault Voltage-58-58V
Signaling rate (max) (bps)5M
Number of Channels1
Parameter NameParameter Value
Pin Count8

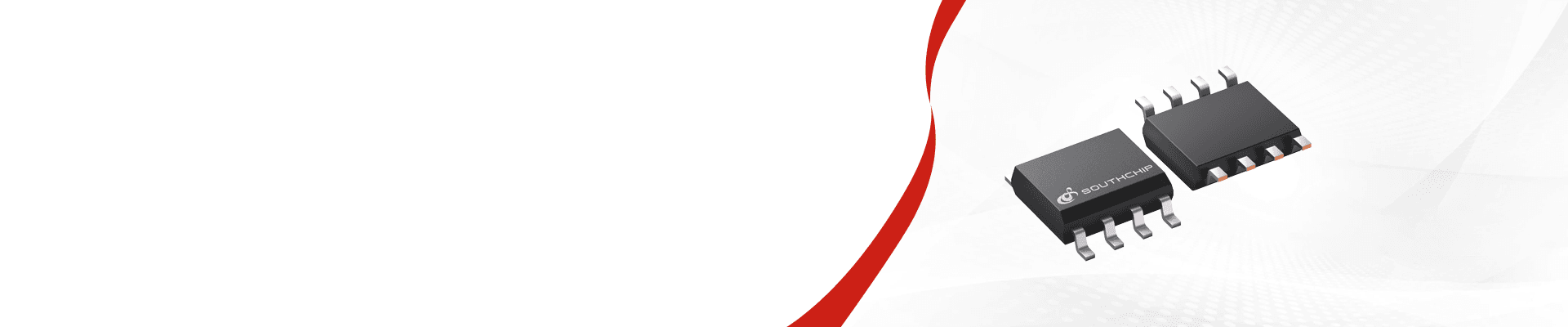

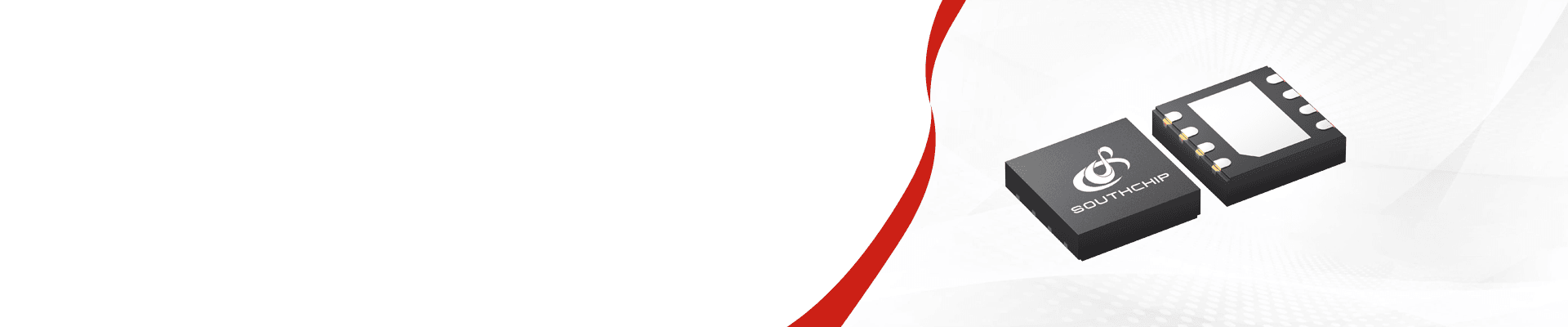

PackageSOP8/DFN8
ProtocolsCAN/CAN FD/CAN SIC
VIO Range2.8-5.5V or without VIO
Parameter NameParameter Value
VCC Range4.5-5.5V
Bus Fault Voltage-58-58V
Signaling rate (max) (bps)5M
Number of Channels1
Pin Count8
PackageSOP8/DFN8
ProtocolsCAN/CAN FD/CAN SIC
VIO Range2.8-5.5V or without VIO
