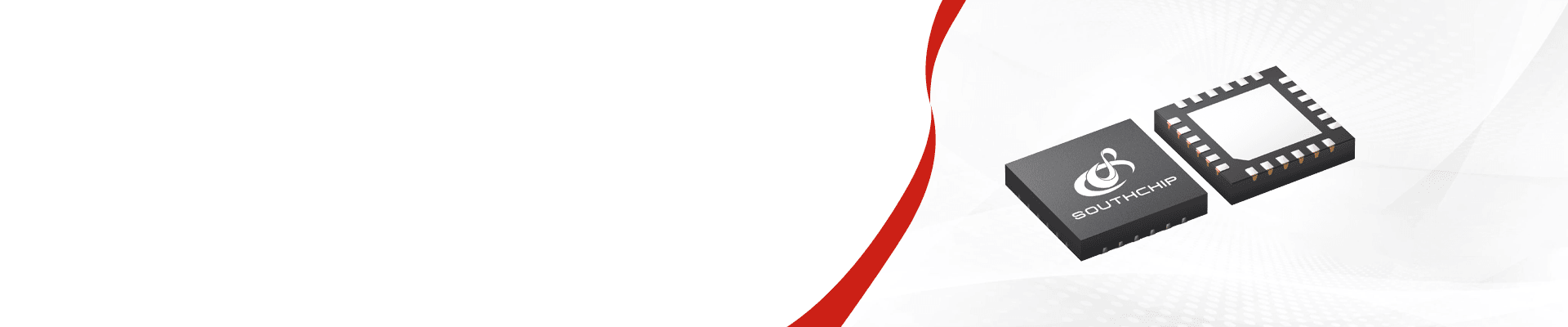

SC2155Q

Type-C/PD and DPDM Fast Charge Controller Supporting SCP and UFCS Protocols

SC2155QSC2155Q

SC2155Q

Type-C/PD and DPDM Fast Charge Controller Supporting SCP and UFCS Protocols

SC2155Q is a Type-C/PD and DPDM fast charge controller, with internal feedback compensation integrated. It complies with the latest Type-C and PD 3.1 standards and supports the proprietary high voltage fast charge protocols with DPDM interface. It supports the SCP and UFCS fast charge protocols. It targets for the wall adapters, travel adapters and applications.
SC2155Q
SC2155Q is a Type-C/PD and DPDM fast charge controller, with internal feedback compensation integrated. It complies with the latest Type-C and PD 3.1 standards and supports the proprietary high voltage fast charge protocols with DPDM interface. It supports the SCP and UFCS fast charge protocols. It targets for the wall adapters, travel adapters and applications.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Applications

More Solutions
Our in-vehicle charging solutions cover different power levels, feature high integration, and support a variety of public and proprietary protocols.
2024.10.24
Learn more
Parameter NameParameter Value
VIN range3.3-22V
Abs. VIN (max)26V
TypePD Controller
DPDMDPDM
PDPD 2.0/3.1 + PPS
Proprietary protocolUFCS/FC/FCP/AFC/SCP/VOOC/SuperVOOC
Features1 x NMOS, MTP, I2C/OPTO control, ADC Int.
Parameter NameParameter Value
PackageQFN24 4x4
TypeProtocol Controller
Output PowerN/A
Single/Dual PortsSingle
DPDM ProtocolApple2.4A/AFC/DCP/FC/FCP/SCP66W/UFCS
CC ProtocolPD 3.2+PPS
Parameter NameParameter Value
VIN range3.3-22V
Abs. VIN (max)26V
TypePD Controller
DPDMDPDM
PDPD 2.0/3.1 + PPS
Proprietary protocolUFCS/FC/FCP/AFC/SCP/VOOC/SuperVOOC
Features1 x NMOS, MTP, I2C/OPTO control, ADC Int.
PackageQFN24 4x4
TypeProtocol Controller
Output PowerN/A
Single/Dual PortsSingle
DPDM ProtocolApple2.4A/AFC/DCP/FC/FCP/SCP66W/UFCS
CC ProtocolPD 3.2+PPS
