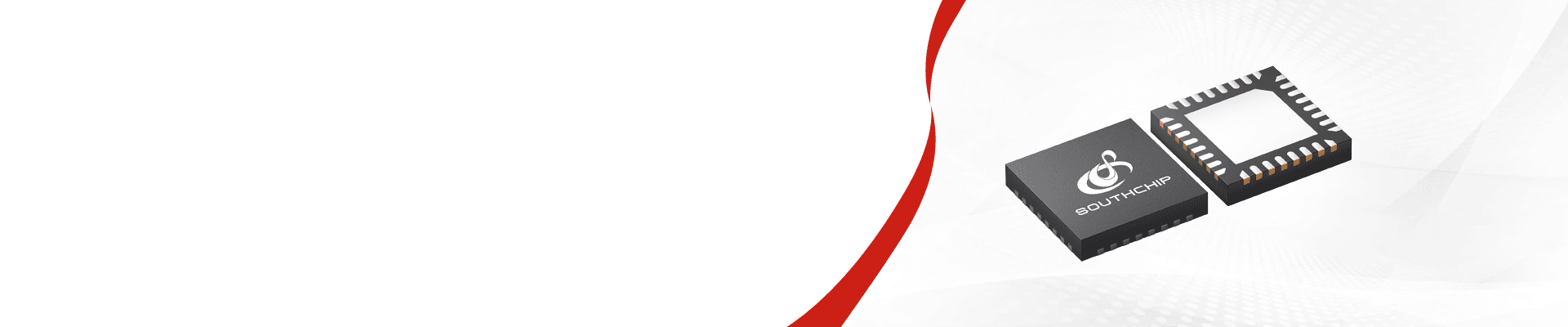

SC2021Q

Type-C/ PD and Dual DPDM Fast Charge Controller

SC2021QSC2021Q

SC2021Q

SC2021Q is a Type-C/PD and DPDM fast charge controller for automotive applications. It complies with the latest Type-C and PD 3.0 standards and supports the proprietary high voltage fast charge protocols with dual DPDM interfaces. It targets for the wall adapters, travel adapters and car chargers. SC2021Q minimizes external components by integrating USB PD baseband PHY, Type-C detection, dual DPDM PHYs, VBUS discharging paths, VCONN supply, programmable feedback compensation, voltage and current sense, 10-bit high performance ADC, dual 10-bit DACs, NMOS gate driver, I2C interface and protection circuits. It contains a 32-bit high performance microcontroller core with 32k-Byte OTP ROM and 2.5k-Byte RAM, which provides cost effective solutions to many applications. SC2021Q supports various protection mechanisms including Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), DPDM Over Voltage Protection (DPDM OVP), CC Over Voltage Protection (CC OVP), VCONN Over Voltage (VCONN OVP), VCONN Over Current (VCONN OCP) and VCONN Short Protection (VCONN SCP), so to effectively ensure stable and reliable operation of system. The SC2021Q is available in 32-pin QFN package.
SC2021Q
SC2021Q is a Type-C/PD and DPDM fast charge controller for automotive applications. It complies with the latest Type-C and PD 3.0 standards and supports the proprietary high voltage fast charge protocols with dual DPDM interfaces. It targets for the wall adapters, travel adapters and car chargers. SC2021Q minimizes external components by integrating USB PD baseband PHY, Type-C detection, dual DPDM PHYs, VBUS discharging paths, VCONN supply, programmable feedback compensation, voltage and current sense, 10-bit high performance ADC, dual 10-bit DACs, NMOS gate driver, I2C interface and protection circuits. It contains a 32-bit high performance microcontroller core with 32k-Byte OTP ROM and 2.5k-Byte RAM, which provides cost effective solutions to many applications. SC2021Q supports various protection mechanisms including Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), DPDM Over Voltage Protection (DPDM OVP), CC Over Voltage Protection (CC OVP), VCONN Over Voltage (VCONN OVP), VCONN Over Current (VCONN OCP) and VCONN Short Protection (VCONN SCP), so to effectively ensure stable and reliable operation of system. The SC2021Q is available in 32-pin QFN package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Applications

More Solutions
Our in-vehicle charging solutions cover different power levels, feature high integration, and support a variety of public and proprietary protocols.
2024.10.24
Learn more
Parameter NameParameter Value
VIN range3.3-22V
Abs. VIN (max)26V
TypePD Controller
PDPD 2.0/ 3.1 + PPS
Proprietary protocolUFCS/FC/FCP/AFC/SCP/VOOC/Super VOOC
Features1×NMOS, MTP, I2C control, ADC Int.
Parameter NameParameter Value
PackageQFN32 4x4
TypeProtocol Controller
Output PowerN/A
Single/Dual PortsSingle
DPDM ProtocolApple2.4A/DCP/FC/AFC/FCP/SCP22.5W/VOOC
CC ProtocolPD 3.2+PPS+XIAOMI
Parameter NameParameter Value
VIN range3.3-22V
Abs. VIN (max)26V
TypePD Controller
PDPD 2.0/ 3.1 + PPS
Proprietary protocolUFCS/FC/FCP/AFC/SCP/VOOC/Super VOOC
Features1×NMOS, MTP, I2C control, ADC Int.
PackageQFN32 4x4
TypeProtocol Controller
Output PowerN/A
Single/Dual PortsSingle
DPDM ProtocolApple2.4A/DCP/FC/AFC/FCP/SCP22.5W/VOOC
CC ProtocolPD 3.2+PPS+XIAOMI
