SC2021PQ

Type-C/ PD and Dual DPDM Fast Charge Controller

SC2021PQSC2021PQ

SC2021PQ

SC2021PQ is a Type-C/PD and DPDM fast charge controller for automotive applications. It complies with the latest Type-C and PD 3.1 standard and supports the proprietary high voltage fast charge protocols with dual DPDM interfaces. It targets for the wall adapters, travel adapters and car chargers. SC2021PQ minimizes external components by integrating USB PD baseband PHY, Type-C detection, dual DPDM PHYs, VBUS discharging paths, VCONN supply, programmable feedback compensation, voltage and current sense, 10-bit high performance ADC, dual 10-bit DACs, NMOS gate driver, I2C interface and protection circuits, which provides cost effective solutions to many applications. SC2021PQ supports various protection mechanisms including Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), DPDM Over Voltage Protection (DPDM OVP), CC Over Voltage Protection (CC OVP), VCONN Over Voltage (VCONN OVP), VCONN Over Current (VCONN OCP) and VCONN Short Protection (VCONN SCP), so to effectively ensure stable and reliable operation of system. The SC2021PQ is available in 32-pin QFN package.
SC2021PQ
SC2021PQ is a Type-C/PD and DPDM fast charge controller for automotive applications. It complies with the latest Type-C and PD 3.1 standard and supports the proprietary high voltage fast charge protocols with dual DPDM interfaces. It targets for the wall adapters, travel adapters and car chargers. SC2021PQ minimizes external components by integrating USB PD baseband PHY, Type-C detection, dual DPDM PHYs, VBUS discharging paths, VCONN supply, programmable feedback compensation, voltage and current sense, 10-bit high performance ADC, dual 10-bit DACs, NMOS gate driver, I2C interface and protection circuits, which provides cost effective solutions to many applications. SC2021PQ supports various protection mechanisms including Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), DPDM Over Voltage Protection (DPDM OVP), CC Over Voltage Protection (CC OVP), VCONN Over Voltage (VCONN OVP), VCONN Over Current (VCONN OCP) and VCONN Short Protection (VCONN SCP), so to effectively ensure stable and reliable operation of system. The SC2021PQ is available in 32-pin QFN package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Applications

More Solutions
Our in-vehicle charging solutions cover different power levels, feature high integration, and support a variety of public and proprietary protocols.
2024.10.24
Learn more
Parameter NameParameter Value
VIN range3.3-12V
Abs. VIN (max)26V
TypePD Controller
PDPD 2.0/ 3.1 + PPS
Proprietary protocolFC/AFC/FCP/SCP
Features1×NMOS, I2C control, ADC Int.
Parameter NameParameter Value

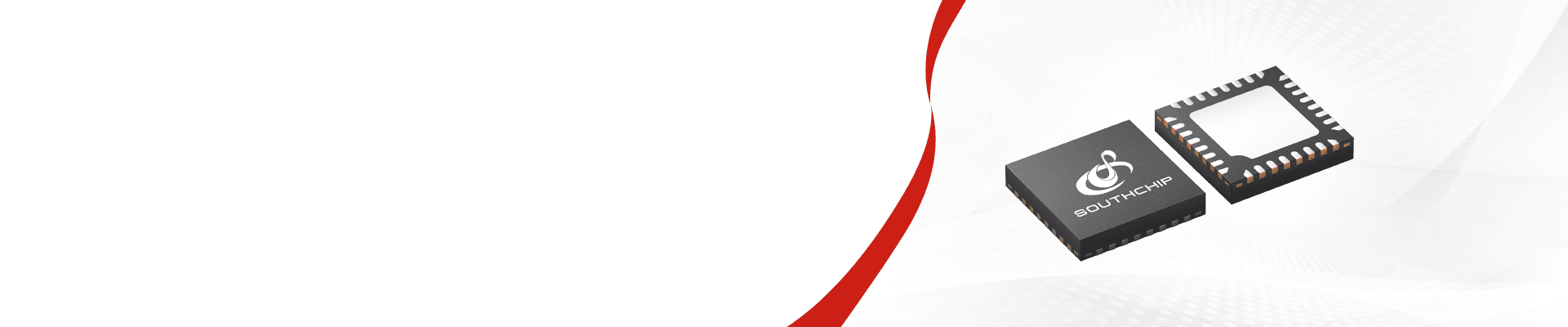

PackageQFN32 4x4
TypeProtocol Controller
Output PowerN/A
Single/Dual PortsSingle
DPDM ProtocolApple2.4A/DCP/FC/AFC/FCP/SCP22.5W
CC ProtocolPD 3.1+PPS
Parameter NameParameter Value
VIN range3.3-12V
Abs. VIN (max)26V
TypePD Controller
PDPD 2.0/ 3.1 + PPS
Proprietary protocolFC/AFC/FCP/SCP
Features1×NMOS, I2C control, ADC Int.
PackageQFN32 4x4
TypeProtocol Controller
Output PowerN/A
Single/Dual PortsSingle
DPDM ProtocolApple2.4A/DCP/FC/AFC/FCP/SCP22.5W
CC ProtocolPD 3.1+PPS
