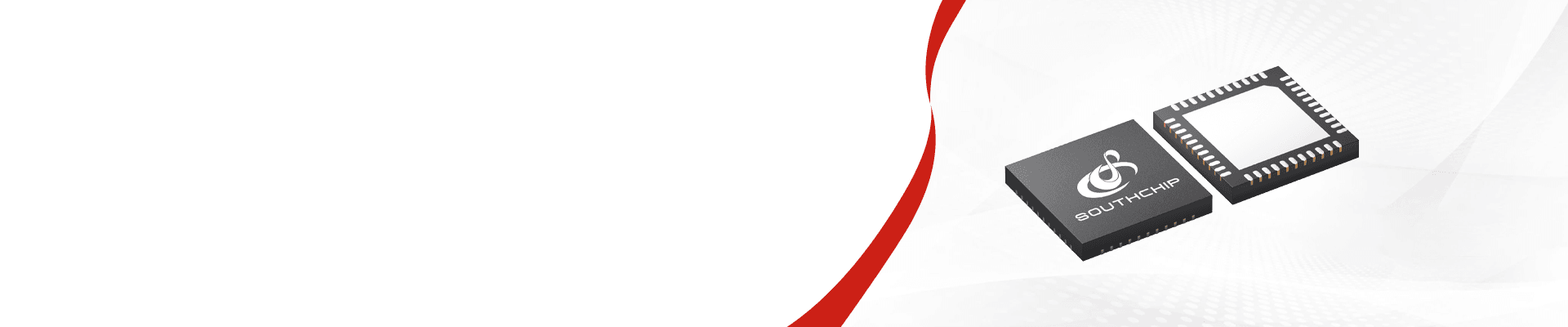

SC2006Q

Dual-C Port Fast Charge Protocol Controller supporting PD3.2 28V DRP Applications

SC2006QSC2006Q

SC2006Q

Dual-C Port Fast Charge Protocol Controller supporting PD3.2 28V DRP Applications

SC2006Q is a dual-C Port Type-C/PD fast charge controller. It complies with the most popular high voltage fast charge protocols with CC & DPDM interface. It targets for the powerbank, car charger and electronic tools applications. SC2006Q minimizes external components by integrating USB PD baseband PHY, Type-C detection, VBUS discharging path, VCONN supply, DPDM fast charge protocol PHY, voltage and current sense, 11-bit high performance ADC, two (10+1) bit VDAC, NMOS gate driver, I2C interface and protection circuits. It embedded 32-bit high performance micro-controller with 128K-Byte flash (another 16kB for ECC), and 8K-Byte SRAM, which provides cost effective solutions to many applications. SC2006Q supports various protection mechanisms including over voltage protection, under voltage protection, over current protection, short circuit protection, over temperature protection, DPDM over voltage protection, CC over voltage protection, VCONN over voltage, over current and short protection, so to effectively ensure stable and reliable operation of system.
SC2006Q
SC2006Q is a dual-C Port Type-C/PD fast charge controller. It complies with the most popular high voltage fast charge protocols with CC & DPDM interface. It targets for the powerbank, car charger and electronic tools applications. SC2006Q minimizes external components by integrating USB PD baseband PHY, Type-C detection, VBUS discharging path, VCONN supply, DPDM fast charge protocol PHY, voltage and current sense, 11-bit high performance ADC, two (10+1) bit VDAC, NMOS gate driver, I2C interface and protection circuits. It embedded 32-bit high performance micro-controller with 128K-Byte flash (another 16kB for ECC), and 8K-Byte SRAM, which provides cost effective solutions to many applications. SC2006Q supports various protection mechanisms including over voltage protection, under voltage protection, over current protection, short circuit protection, over temperature protection, DPDM over voltage protection, CC over voltage protection, VCONN over voltage, over current and short protection, so to effectively ensure stable and reliable operation of system.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Applications

More Solutions
Our in-vehicle charging solutions cover different power levels, feature high integration, and support a variety of public and proprietary protocols.
2024.10.24
Learn more
Parameter NameParameter Value
VIN range3.3-30V
Abs. VIN (max)33V
IEC-ESD
TypeProtocol Controller
Output PowerN/A
Parameter NameParameter Value
DPDM ProtocolApple2.4A/AFC/DCP/FC/FCP/SCP66W/VOOC
Single/Dual PortsDual
CC ProtocolPD 3.2+PPS+XIAOMI
FeaturesSupport dual ports, 2×NMOS, MTP, I2C control, ADC Int.
PackageQFN44 5x5
Parameter NameParameter Value
VIN range3.3-30V
Abs. VIN (max)33V
IEC-ESD
TypeProtocol Controller
Output PowerN/A
DPDM ProtocolApple2.4A/AFC/DCP/FC/FCP/SCP66W/VOOC
Single/Dual PortsDual
CC ProtocolPD 3.2+PPS+XIAOMI
FeaturesSupport dual ports, 2×NMOS, MTP, I2C control, ADC Int.
PackageQFN44 5x5
