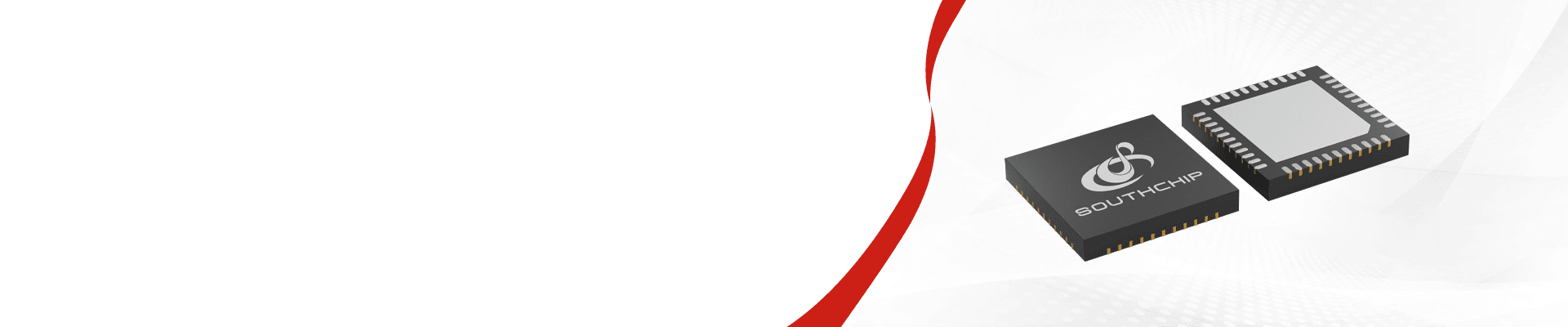

SC2006A

A fast charging protocol controller that supports 3x Type-C DRP applications

SC2006ASC2006A

SC2006A

A fast charging protocol controller that supports 3x Type-C DRP applications

The SC2006A is a fast charging controller that supports three Type-C DRP ports. It supports all mainstream fast charging protocols and features CC and DPDM interfaces. Its target applications include power banks, car chargers, and power tools, among others. By integrating Type-C/PD circuits, DPDM/UFCS circuits and other fast charging protocol circuits, as well as VBUS discharge paths, voltage and current detection, an 11-bit high-performance ADC, two 11-bit DACs, NMOS gate drivers, an I2C interface, and protection circuits, the SC2006A minimizes the number of external components. It is equipped with a 32-bit high-performance microcontroller, featuring 128KB flash and 8KB SRAM, providing a cost-effective solution for a variety of applications. The SC2006A supports a variety of protection mechanisms, including overvoltage protection, undervoltage protection, overcurrent protection, short-circuit protection, overtemperature protection, DPDM overvoltage protection, CC overvoltage protection, and VCONN overvoltage/overcurrent/short-circuit protection, effectively ensuring stable and reliable system operation.
SC2006A
The SC2006A is a fast charging controller that supports three Type-C DRP ports. It supports all mainstream fast charging protocols and features CC and DPDM interfaces. Its target applications include power banks, car chargers, and power tools, among others. By integrating Type-C/PD circuits, DPDM/UFCS circuits and other fast charging protocol circuits, as well as VBUS discharge paths, voltage and current detection, an 11-bit high-performance ADC, two 11-bit DACs, NMOS gate drivers, an I2C interface, and protection circuits, the SC2006A minimizes the number of external components. It is equipped with a 32-bit high-performance microcontroller, featuring 128KB flash and 8KB SRAM, providing a cost-effective solution for a variety of applications. The SC2006A supports a variety of protection mechanisms, including overvoltage protection, undervoltage protection, overcurrent protection, short-circuit protection, overtemperature protection, DPDM overvoltage protection, CC overvoltage protection, and VCONN overvoltage/overcurrent/short-circuit protection, effectively ensuring stable and reliable system operation.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Applications

More Solutions
As a portable device, portable power is widely used to charge and replenish smartphones, tablets, Bluetooth headsets and other devices. We can provide users with convenient, efficient and safe mobile charging solutions.
2025.02.17
Learn more
Parameter NameParameter Value
Ports3C
Power RoleDRP
Loop CompNA
NVM TypeFlash
NVM Size128 kB
Parameter NameParameter Value
Max Operating Voltage30V
Other FuncePWM, Q-DET
PackageQFN-44 (5*5)
ApplicationPowerbank
Parameter NameParameter Value
Ports3C
Power RoleDRP
Loop CompNA
NVM TypeFlash
NVM Size128 kB
Max Operating Voltage30V
Other FuncePWM, Q-DET
PackageQFN-44 (5*5)
ApplicationPowerbank
