POWERQUARK® Empowers UGREEN's Next-Generation Chargers to Enhance User Experience

POWERQUARK® Empowers UGREEN's
Next-Generation Chargers to Enhance User ExperiencePOWERQUARK® Empowers UGREEN's
Next-Generation Chargers to Enhance User Experience

Case Introduction

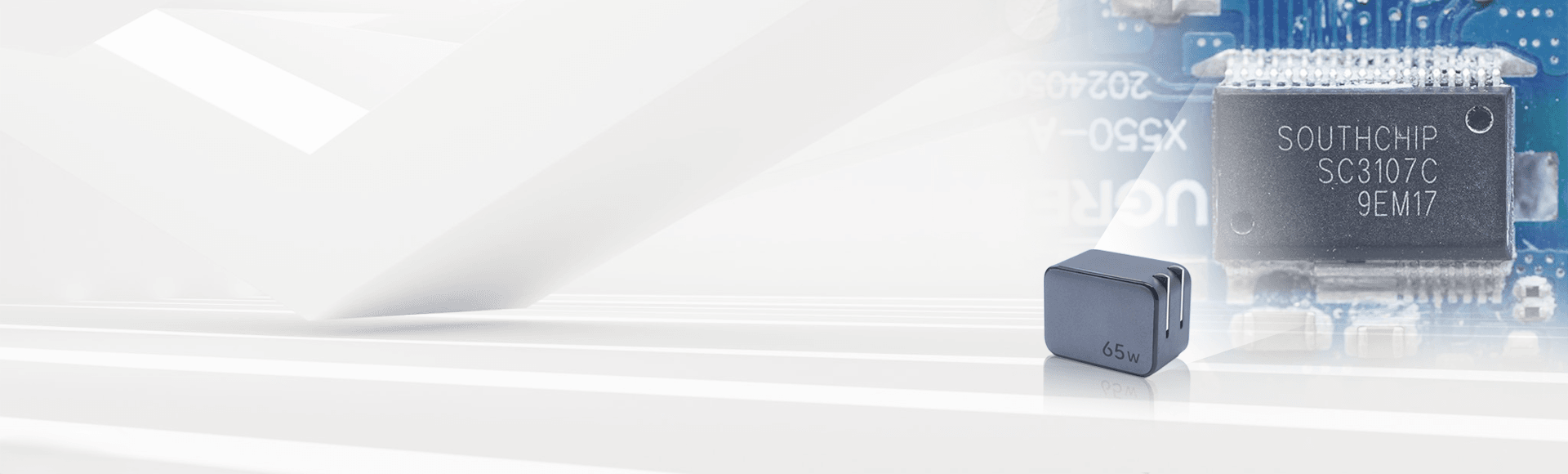

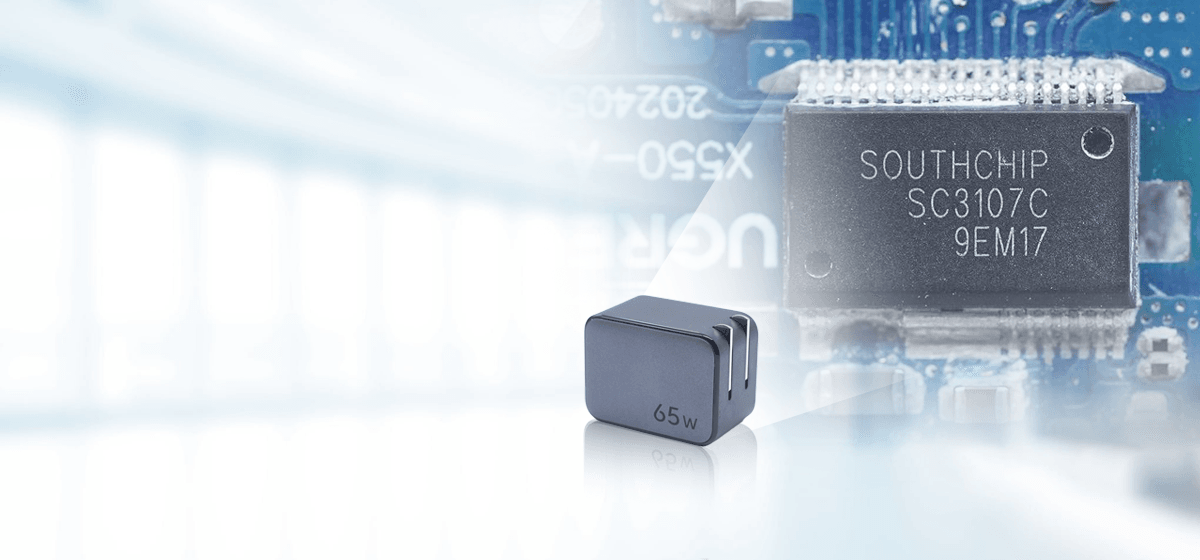

Southchip's POWERQUARK® series chips are applied in UGREEN's 65W GaN fast-charging adapter

Case Introduction

Case Background

Recently, UGREEN's 65W GaN fast-charging adapter powered by Southchip's POWERQUARK® series chips was released. This USB-C GaN charging adapter supports a wide voltage range of 100V-240V, has a compact size that fits in the palm of your hand, and weighs only 108g. The lightweight and small form factor, combined with its powerful performance, vividly demonstrate the high integration and high efficiency features of the POWERQUARK® series chips.

Customer Pain Points

The current pain points of charging adapters mainly include: slow charging speed, which fails to meet users' needs for fast charging; poor portability, as multiple adapters are required for different devices; and insufficient compatibility, due to the lack of universal fast-charging protocols across different brands.

Technical Analysis

The Southchip POWERQUARK series is based on its self-developed fully integrated packaging technology. Compared with the previous generation of solutions, it can reduce up to 20 external components and shrink the overall device volume by up to 30%. Moreover, the highly integrated self-developed packaging ensures sufficient heat dissipation, reducing the adverse effects of excessive temperature rise on the device and enhancing system reliability. POWERQUARK achieves secondary-side control soft switching and secondary-side active synchronous rectification through a high-speed isolated digital communication module. This significantly improves product efficiency, laying the foundation for higher power density while also enhancing the overall temperature rise performance, bidding farewell to the "hot-to-touch" era and delivering a more efficient and smooth charging experience to users. POWERQUARK supports a variety of mainstream fast-charging protocols and integrates protection mechanisms such as overvoltage protection for power supply, cycle-by-cycle current protection, input undervoltage protection, output overvoltage protection, output overcurrent protection, and output short-circuit protection. These features can be combined with the overall system design to provide comprehensive protection, effectively ensuring the safety and reliability of the charging process.
Icon Quotes

The Southchip POWERQUARK series is the first domestic isolated flyback fully integrated solution, integrating five independent functions—primary-side controller, GaN power switch, high-speed isolated digital communication module, synchronous rectification controller, and protocol—into a single chip.

Technical Analysis 1

Product Solutions

Product Solutions

Product Solutions

As a high-performance fast-charging solution, POWERQUARK integrates the functions previously achievable only with five separate chips into a single chip, thanks to its ultra-high integration. This helps charger developers more aggressively reduce the product size. Meanwhile, POWERQUARK's soft-switching technology and active synchronous rectification can effectively reduce system EMI and enhance system reliability, helping engineers shorten the development cycle and improve development efficiency. POWERQUARK is a fast-charging partner you can trust.

Related Products

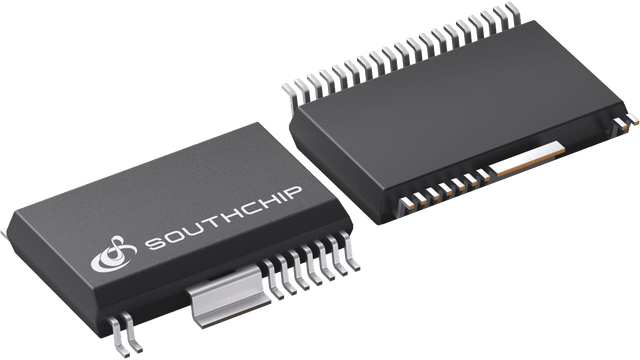

SC3107

SC3107C

SC3107 is a high performance, multi-mode flyback PWM converter that integrates a GaN switch, primary controller, synchronous rectification controller, and protocol controller in a single IC package
